Press brake Tooling Specification
Press brake Tooling Advantages
The European & American style Press Brake tooling offers a high performance for sheet metal bends to grow your business.
Custom Press Brake Tooling Solutions
JSTMT manufactures custom press brake punches and dies based on your drawings, machine specifications, and bending requirements. We support standard and special tooling for a wide range of applications.
Segmented Press Brake Tooling:
available in 415 mm and 835 mm segment tooling for flexible tooling setup.

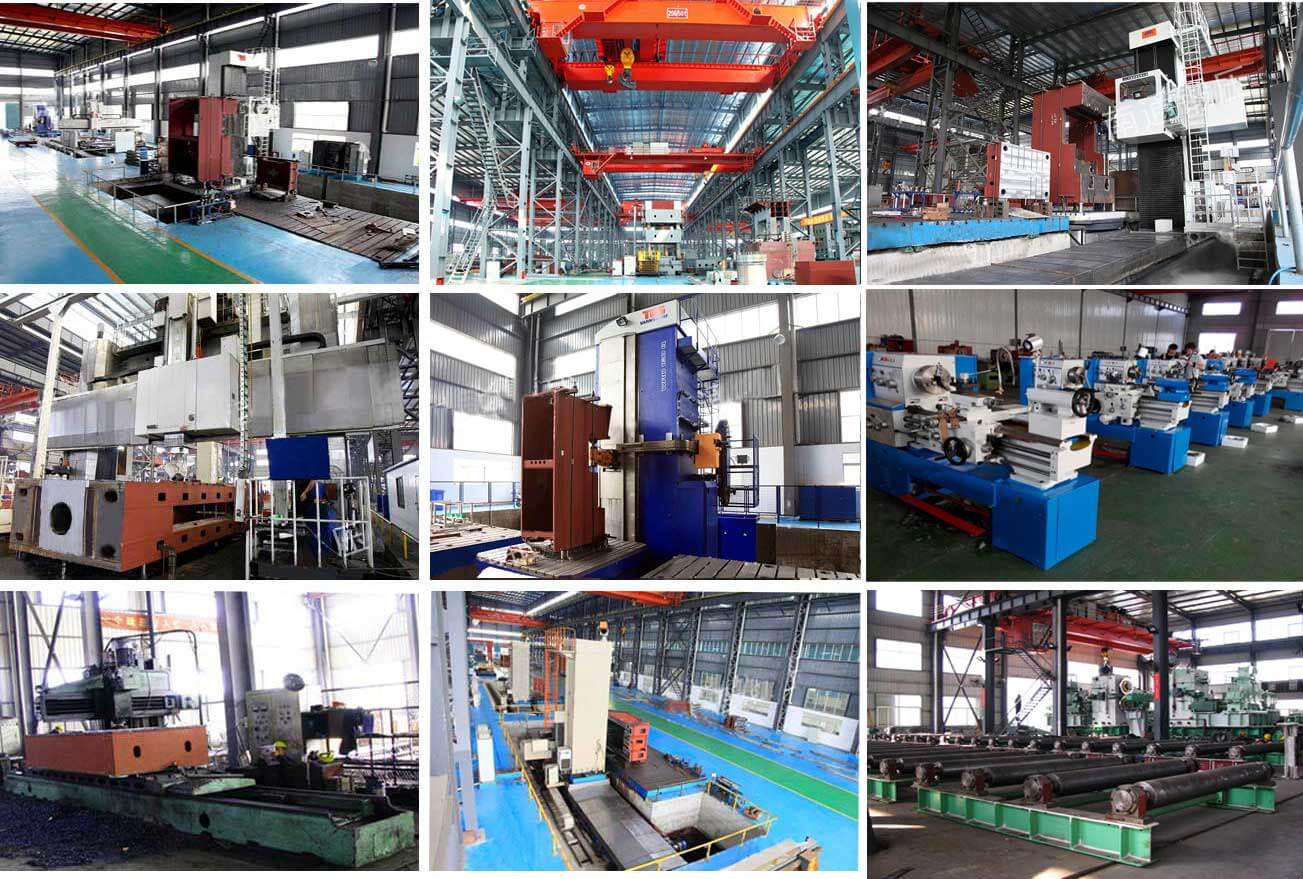

Precision Manufacturing Capability
JSTMT manufactures press brake tooling using advanced CNC machining, precision grinding, and heat treatment processes to ensure consistent quality, dimensional accuracy, and long service life.
♦ CNC Milling & Machining
♦ Precision Grinding
♦ Heat Treatment & Hardening
♦ Surface Finishing
♦ Hardness Testing
♦ Final Inspection & Quality Control
Industry Applications
Our high-precision press brake tooling is widely used for bending mild steel, stainless steel, aluminum and galvanized sheet metal. Typical applications include:
♦ Stainless Steel Fabrication
♦ Aluminum Parts
♦ Electrical Cabinet Manufacturing
♦ HVAC Ductwork Fabrication
♦ Metal Furniture Production
♦ Elevator Panels Manufacturing
♦ Automotive Sheet Metal Parts
♦ Custom Sheet Metal Fabrication
Technical Resources & Tooling Excellence
Selecting the right press brake tooling is essential for achieving accurate bending results and extending tool life. Our engineering team provides practical technical resources to support daily production and tooling selection.
- Press Brake Tooling Classification – Overview of punch and die types such as gooseneck, acute, and offset tooling for different bending applications.
-
How to Calculate V-Die Opening – Helps operators select the correct V-die opening based on material thickness and bending requirements.
-
Air Bending vs. Bottoming – Comparison of air bending and bottoming, including their effects on tonnage and angle accuracy.
- 5 Common Bending Defects – Practical solutions for defects such as springback, cracking, and surface marking..
-
Press Brake Tooling Material Overview – Introduction to high-strength tool steels such as 42CrMo and T8 for durability and wear resistance.
- Tooling Compatibility Guide: European, American vs. Wila (New Standard)- Learn about tang dimensions, clamping system for proper machine matching.
FAQ- Engineering Quick Answers
Check the punch shank profile and clamping system. Common standards include Amada/European, Trumpf, Wila, LVD, and Bystronic. If you are unsure, send us a photo of your tooling or clamping system, and our engineers will confirm the correct standard.
Yes. We supply segmented tooling in 835 mm, 415 mm, and other sectionalized lengths. Segmented tooling helps reduce changeover time and improves bending flexibility
We use 42CrMo alloy steel for our punches and dies. This provides high strength, toughness, and wear resistance for long service life.
Yes. Our premium tooling is precision ground for accurate dimensions, proper alignment, and consistent bending results.
Yes. We manufacture custom punches, dies, and special tooling based on your drawings and machine specifications. Our engineering team can help with design and production.
Please provide tooling drawings, bending profiles, machine brand, material type, and any special requirements. If you do not have drawings, our engineers can help develop a suitable solution. Contact us for a quotation.
