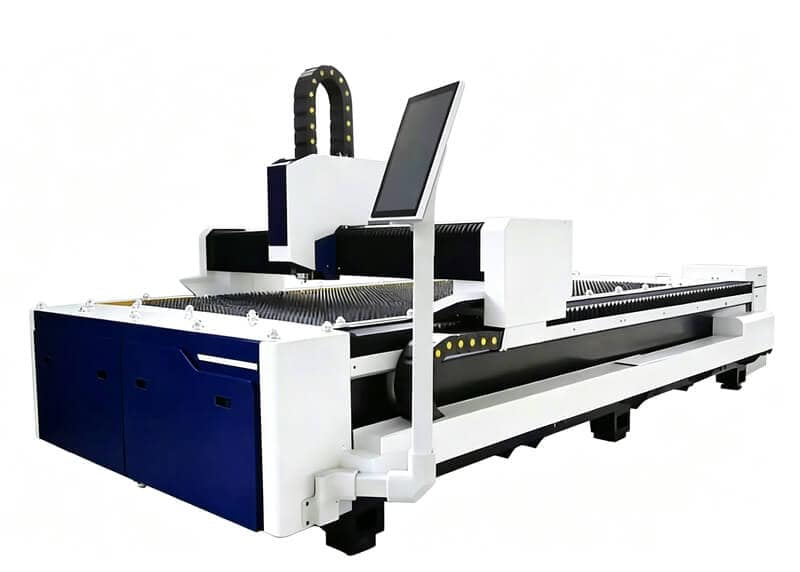

JSTMT High-Precision Fiber Laser Cutting Machine is engineered for industrial-grade sheet metal processing, combining high cutting speed, stable beam quality, and sub-millimeter positioning accuracy for continuous manufacturing environments. Available in 1.5KW, 2KW, 3KW, and 6KW+ power configurations, the system supports flexible production needs from precision thin-sheet cutting to higher-output metal fabrication.
Industry Applications
The JSTMT fiber laser cutting machine is designed for processing stainless steel, carbon steel, aluminum alloy, spring steel, and galvanized sheet in demanding industrial environments. It is widely used in sheet metal fabrication, electrical cabinet production, automotive parts, elevator manufacturing, kitchenware, advertisement signs, machinery components, and precision metal parts manufacturing.
What is Fiber Laser Cutting Machine?
A fiber laser cutting machine is a CNC-controlled metal fabrication system that uses a high-density fiber laser beam to cut sheet metal with speed, accuracy, and repeatability. The machine focuses laser energy through an optical fiber delivery system, creating a narrow cutting path that melts or vaporizes the material while assist gas removes molten metal from the cut area.
Compared with traditional CO2 laser cutting systems, fiber laser cutting machines typically provide higher photoelectric conversion efficiency, lower maintenance requirements, faster processing speeds for reflective and thin metals, and stronger thermal stability during long production cycles.
Industry Grade Hardware Confirguration
✔ Premium Laser Source (1,5KW – 6KW+):Powered by industry-leading IPG Photonics, Maxphotonics, or Raycus to precisely match diverse material thicknesses and heavy production cycles.
✔ Intelligent Auto-Focus Cutting Head: CNC drive real-time focal spot optimization via Raytools/Precitec, guaranteeing rapid piercing dynamics and uniform bur free edge quality.
✔ 1.2G High-Acceleration Drive: Built with Hiwin guide rails & YYC rack and pinion to maintain non-deforming precision under continuous loads
Materials JSTMT Fiber Laser Cutting Machines Can Process
✔ Carbon Steel: 0.5-20mm
✔ Stainless Steel 0.5-10mm
✔ Aluminum: 0.5mm – 8mm
✔ Brass: 0.5mm – 6mm
Core Components
Precitec auto-focus Raytool cutting head, automatically adjusts the focal spot position.

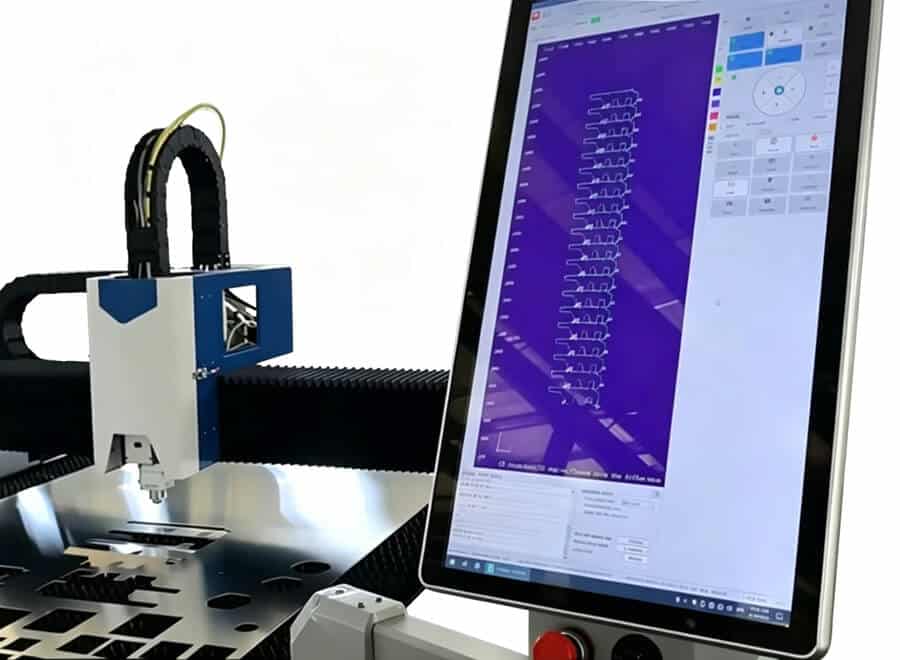

HypPanel offers a smart, user-friendly control system for real-time monitoring and seamless operation.
Hanli Water Chiller offers precise temperature control to extend the lifespan of the laser source and core components
Vinhee Air Conditional maintains an optimal, dust-free environment to ensure the longevity of electrical components.
Technical Specfication
| Parameter | Specification |
| Working Area | 1500mm x 3000mm |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Positioning Accuracy | ±0.03mm |
| Repeatability | ±0.02mm |
| Max. Linkage Speed | 100m/min – 120m/min |
| Table | Single Table |
| Welded machine structure | Plate & pipe welded steel structure |
| Colling Method | water colling & air conditional for Electrical Box |
| Operation Voltage | 380/415volts |
How It Works
Watch the JSTMT high-power fiber laser cutting machine execute high-speed, high-density nesting and precision piercing on a 1.5mm Aluminum steel.
Related Accessories | System Integration
To achieve the best air-assist cutting result, we recommend our specialized 16bar screw air compressor.
