JSTMT is a leading press brake tooling & die manufacturer, providing high-precision standard and custom punch and die solutions 100% compatible with Amada, Trumpf, Wila, LVD, and Bystronic systems. As a professional press brake die manufacturer, our range includes gooseneck punches,precision-ground dies and die racks designed to improve bending accuracy and reduce setup time.
Available in segmented lengths such as 835 mm and 415 mm, as well as full-length options, our press brake tooling supports a wide range of sheet metal fabrication needs. To help maintain long-term bending accuracy, we also provide maintenance guidance and press brake die racks for professional tool storage. JSTMT helps global manufacturers achieve consistent bending results with reliable, heavy-duty tooling performance.



What is Press Brake Tooling

Press brake tooling refers to the punches and dies installed on a press brake to bend sheet metal into accurate angles, flanges, channels, hems, offsets, and custom profiles. The punch applies force from above while the die supports the sheet metal below, allowing the material to form along the required bend line. Common press brake tooling includes standard punches, gooseneck punches, V-dies, hemming tools, radius tools, offset dies, and segmented tooling for different bending applications.
Choosing the right tooling depends on the material thickness, bend angle, inside radius, flange length, machine clamping system, and production volume.



How It Works

This video shows how press brake punches and dies work together to bend sheet metal. The punch presses the material into the die opening, forming accurate angles, flanges, channels, or custom profiles according to the selected tooling shape.



Press Brake Tooling Types

Standard press brake tooling-CNC type

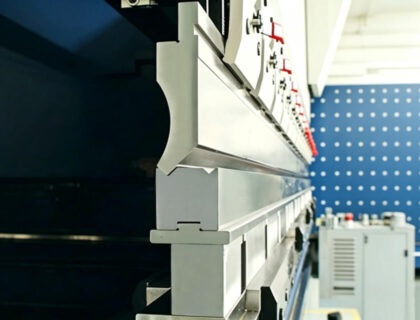

Standard Press Brake Tooling

Universal V-dies and punches for versatile, cost-effective CNC metal bending

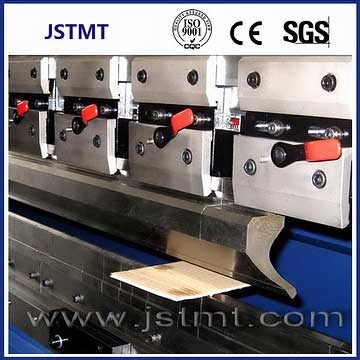

Amada press brake tooling

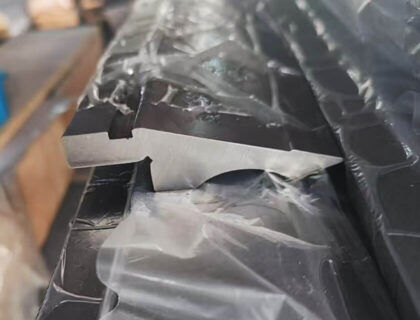

Amada Press Brake Tooling

Precision-ground Amada tooling; ensures fast setup and stable angle consistency

Trumpf press brake tooling

Trumpf Press Brake Tooling

Self-seating 20mm tang with auto-clamping engineered for high-precision production

Colly press brake tooling

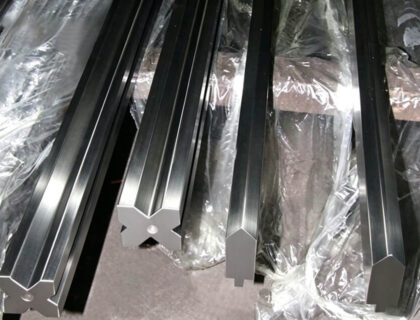

Colly Press Brake Tooling

Heavy-duty Colly tools; 42CrMo steel for repeatable accuracy and durability

LVD press brake tooling

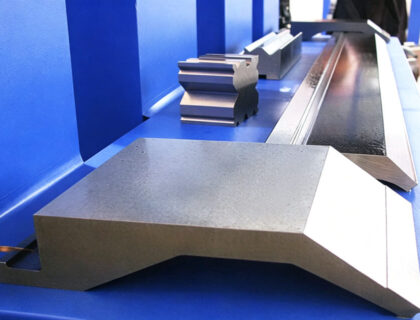

LVD Press Brake Tooling

LVD style tools optimized for precision air bending and minimal tool wear

American press brake tooling

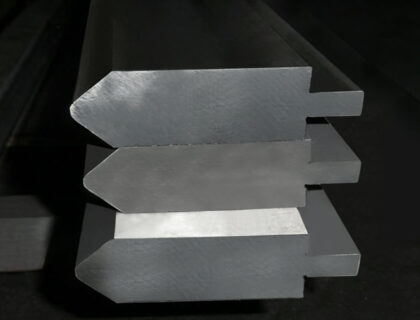

Amerian Style Press Brake Tooling

Traditional 0.5″ tang tools providing robust, direct-force bending at low cost

European press brake tooling -Hemming Tool

European Press Brake Tooling

Precision-ground 13mm tang modular for rapid changeover, repeatablity

PRODUCTS CORE  SOLUTIONS

Technical Specifications of Press Brake Tooling

JSTMT press brake tooling is manufactured from high-strength tool steel and precision ground for accurate sheet metal bending.

Specification Details
Tooling Material 42CrMo, 4140 alloy steel, T8 steel, or customized tool steel
Hardness HRC 47-52, with optional induction hardening or surface treatment
Precision Precision-ground profiles with tight dimensional tolerance for accurate bending
Tool Length 835 mm, 415 mm, full-length, segmented, or custom lengths
Tooling Types Standard punches, gooseneck punches, V-dies, hemming tools, radius tools, offset dies, and custom forming tools
Compatible Systems Amada, Trumpf, Wila, LVD, Bystronic, European style, and American style press brakes
Applications Sheet metal bending, flanging, hemming, channel forming, offset bending, and custom profile forming

The specifications help manufacturers choose press brake tooling based on material thickness, bending angle, required radius, machine compatibility, and production volume.

Why High-Quality Press Brake Tooling Matters

High-quality press brake tooling helps manufacturers improve bending accuracy, reduce setup time, extend tool life, and maintain consistent results across different sheet metal production runs.

Improved bending accuracy: Precision-ground punches and dies help maintain consistent bend angles and dimensions

Reduced setup time: Proper tooling length, segmentation, and machine compatibility make tool changeovers faster.

Longer tool life: Hardened tool steel improves wear resistance during repeated bending operations.

Better part consistency: Accurate punch and die profiles reduce variation between production batches

Flexibility segmented length

For Custom Complex Forming parts

Custom Press Brake Tooling  Solutions

JSTMT manufactures custom press brake punches and dies based on your drawings, machine specifications, and bending requirements. We support standard and special tooling for a wide range of applications.

Compatibility: Amada / European Style Tooling, Trumpf / Wila Style Tooling，LVD, Bystronic, Colly & Other Systems

Custom Capacity

Custom Punch Profile

Custom die openings

Radius & Hemming Tooling

Joggle Tooling | Offset Tooling

Multi-Stage Tooling

Replacement Tooling

OEM Manufacturing

Drawing-Based Production

Download Press Brake Tooling Catalog PDF

How to Choose the Right Press Brake Tooling

Choose press brake tooling based on the sheet material, material thickness, bend angle, inside radius, flange length, machine tonnage, clamping system, and production volume. V-dies and standard punches are used for general bending, while gooseneck punches, hemming tools, offset dies, and joggle tools are selected for more specific forming needs.

Request a Custom Press Brake Tooling

Segmented Press Brake Tooling:

available in 415 mm and 835 mm segment tooling for flexible tooling setup.

segmented press brake tooling

Precision Manufacturing Capability

Industry Applications

JSTMT manufactures press brake tooling using advanced CNC machining, precision grinding, and heat treatment processes to ensure consistent quality, dimensional accuracy, and long service life.

♦ High-Grade Raw Material: 42CrMo (4140) Alloy Steel
Quenched and tempered for superior core strength and structural stability to withstand extreme bending tonnages.
♦ CNC Milling & Machining
High-speed CNC centers ensure precise geometric shaping for complex tooling profiles.
♦ Heat Treatment & Hardening
Deep-layer induction or laser hardening (HRC 47-52) for maximum wear resistance on working edges.
♦ Precision Grinding
Advanced CNC grinding achieving a tolerance of ±0.01mm, ensuring perfect tool alignment and angle accuracy.
♦ Hardness & Quality Testing
100% dimensional verification and hardness testing to guarantee consistent industrial performance.

Our high-precision press brake tooling is widely used for bending mild steel, stainless steel, aluminum and galvanized sheet metal. Typical applications include:

♦ Stainless Steel Fabrication
♦ Aluminum Parts
♦ Electrical Cabinet Manufacturing
♦ HVAC Ductwork Fabrication
♦ Metal Furniture Production
♦ Elevator Panels Manufacturing
♦ Automotive Sheet Metal Parts
♦ Custom Sheet Metal Fabrication

42CrMo-press-braek-tooling-material
press-brake-dies-full-heatreat hardness
Press Brake tooling Hardness testing

Technical Resources & Tooling Excellence



Selecting the right press brake tooling is essential for achieving accurate bending results and extending tool life. Our engineering team provides practical technical resources to support daily production and tooling selection.

FAQ- Engineering Quick Answers

Check the punch shank profile, die holder, and clamping system. Common press brake tooling standards include Amada/European, Trumpf, Wila, LVD, and Bystronic. If you are unsure, send us a photo of your tooling or clamping system, and our engineers can help confirm the correct tooling interface before quotation.

Yes. We supply segmented press brake tooling in common lengths such as 835 mm, 415 mm, and other sectionalized sizes. Segmented tooling helps reduce changeover time, supports flexible bending lengths, and makes it easier to form small batches or parts with different flange positions. Send us your required bending length, machine model, and tooling style, and we can recommend a suitable segmentation plan.

JSTMT commonly uses 42CrMo alloy steel for press brake punches and dies. The tooling is processed with quenching and tempering to improve core strength, toughness, and wear resistance for long service life. For special bending applications, we can also recommend suitable tool steel, hardness, and surface treatment based on your sheet material, thickness, and production volume.

Yes. Our premium press brake punches and dies are precision ground to achieve tight dimensional tolerance of ±0.01mm, accurate tool alignment, consistent bending angles, and reliable interchangeability between tool segments. For projects that require critical accuracy, please send your drawing, tolerance requirements, tooling length, and machine system so we can confirm the suitable manufacturing process.

To select the correct press brake tooling, consider the sheet material, material thickness, bend angle, inside radius, flange length, press brake tonnage, tooling clamping system, and production volume. For general air bending, V-dies and standard punches are commonly used. For deep boxes or return flanges, gooseneck punches provide better clearance. For flattening edges, hemming tools are required. For stepped profiles or overlapping joints, offset dies or joggle tools are more suitable.

Please provide tooling drawings, bending profiles, machine brand, material type, and any special requirements. or Contact our technical team today for a tailored solution.

  • Press brake brand, model, and clamping system
  • 2D/3D drawing, sample photo, or existing tool profile
  • Forming profile, Tooling length, such Flange length, offset height
  • Sheet material and material thickness
  • Segmentation requirements, or Estimated production volume and accuracy requirements



Request Tooling

Please send drawing via [email protected] , will reply within 2 hours.
