Optimize your sheet metal bending precision with JSTMT’s premium CNC press brake controller solutions.Whether you are operating an entry-level torsion bar hydraulic press brake or a high-performance multi-axis synchronized electro-hydraulic servo press brake, choosing the right press brake controller is critical to maintaining sub-millimeter angular accuracy to maximize smart manufacturing productivity.
Selecting the Right Press Brake Controller for Your Fabrication Need

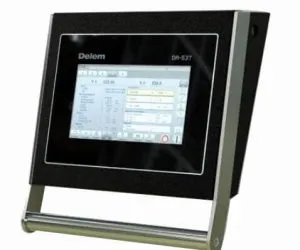

DA53T
DA-53T CNC press brake controller retrofits with Multiple control solutions for electro-hydraulic synchronized Delem press brakes. Auto press brake Offers the easiest CNC Press Brake programming based on the Delem graphical touch screen user interface. These systems manage up to 4+1 axes (Y1, Y2, X, R + Hydraulic/Mechanical Crowning), offering a “one-touch” 2D graphical touch screen interface, automatic bend sequence computation, and collision detection.
DA66T
High-End CNC Press brake controller (Delem DA-66T / DA-69T / ESA S600 Series): Engineered for complex, multi-axis heavy-duty sheet metal fabrication. Features full 3D visual graphics, profile drawing imports (DXF/STEP files), automatic calculation of springback compensation, and seamless integration with robotic bending cells.
DELEM CNC PRESS BRAKE CONTROLLER
Multiple control solutions, flexibly fitting different levels of Delem press brake controls manual and CNC, based on the same strong philosophy.
Engineered for seamless interaction with hydraulic proportional valves, backgauge servo motors, and crowning compensation mechanisms, our press brake controllers deliver graphical 2D/3D bending simulations, automatic bend sequence calculations, and angle correction databases to maximize smart manufacturing productivity.
Delem Da41s
Da41s Delem press brake controller is improved to control with torsion shaft perfectly together with PRONET servo. Advanced functions of angle programming, pressure calculation, and built-in logic improve the overall competitiveness of the machine tool.
E300
The E300 is a dedicated NC controlled hydraulic controller for Torsion Bending Machine, which combines the expertise of ESTUN for many years and provides a complete economic solution for the Torsion Bending Machine with the support of unique drive control technology.
ESTUN PRESS BRAKE CONTROLLER
We supply and integrate world-class, industrial-grade CNC and NC systems—including the Estun E21S/E300P serie.Upgrade your press brake controls retrofit with the latest in PC-based technology.
E200P
E200P+ PRONET servo can control bending machine with conventional torsion shaft perfectly. Block and block shafts can be positioned rapidly and accurately. The action of the machine tool can be controlled directly via built-in logic function to improve the overall cost efficiency of the machine tool.
E21
NC system Estun E21/E22 Press Brake controller：Best suited for conventional torsion bar press brakes. It delivers reliable, programmable control for the X-axis (backgauge stroke) and Y-axis (ram stroke), featuring intelligent positioning, workpieces counting, and stock memory parameters.
CNC Press Brake Controller Axis Capabilities
| Controller Model | Max Controlled Axes | Typical Axis Configurations | Interface Type |
|---|---|---|---|
| Estun E21 / E21S | 2 Axes (NC) | X (Backgauge Positioning) + Y (Torsion Bar Ram Stroke) | High-contrast LCD Screen |
| Delem DA-41T | 2 Axes (CNC) | X (Backgauge Servo Drive) + Y (Ram Stroke Angle Programming) | Bright TFT Touchscreen Control |
| Delem DA-53T | 4 + 1 Axes | Y1, Y2 (Dual Servo-Proportional Cylinders) + X + R + V (Crowning) | 10.1" 2D Multi-touch Graphical Interface |
| Delem DA-66T | Up to 8+ Axes | Y1, Y2, X1, X2, R1, R2, Z1, Z2 + Automatic Deflection Compensation | 17" 3D Full Graphical Touch Visualization |
