Trumpf press brake tooling is a creative bending tool for the sheet metal process, which offers precise and common European style & Wila Trumpf tooling. It includes punches, dies, adapters, and Die holders for any simple and complex bends. Trumpf tooling supports segmented, solid length, and half-length sizes. It has a stable tool life and safe precise bends at cost effective prices.

Filter

Trumpf Press Brake Tooling working principle

Trumpf press brake tooling can offer high quality Trumpf sheet metal bends. Trumpf bending process involves 4 bends: air bending and coining, folding
and radius bending, and a wide range of sheet thicknesses and materials. It uses hydraulic power to apply force, The top punch can compress onto the V die to form the metal shape. The back-gauges ensure the sheet plate with precise positioning. we have full lines of dies for Trumpf press brake tools, including acute punch and dies, the segmented and full length of 6000 mm. We offer a Trumpf press brake tooling catalog with a customized design.

We adopt the latest bending technology for Trumpf sheet metal tool solutions. The clamp system supports a flexible quick change for hydraulic & CNC press brakes. our Trumpf style press brake tooling can meet all tool automation with intelligent software. We can assist with Trumpf press brake error codes, Trumpf troubleshooting, and how the tools support the process. Please call us to find our Trumpf press brake tooling on sale and Trumpf bend guide online.

 Press Brake Tooling Types

Custom Press Brake Tooling Now

SEND A QUOTE

    Tooling Retrofitting

    Trumpf Hook style to optimize the tool structure during the process.

    Guarantee high levels of availability and rapid delivery times

    SEND A QUOTE

      trumpf style
      safety clicks-2

      Punch with Safety Clicks

      A spring loaded safety mechanism intergrated into the tool

      The safety click enable tool change

      Simple clicked and out of the machine clamp vertically

      SEND A QUOTE

        Trumpf  Wila Tooling

        Gooseneck punch+ V Dies

        Press brake forming Custom Tooling supported

        SEND A QUOTE

          3-EV00S

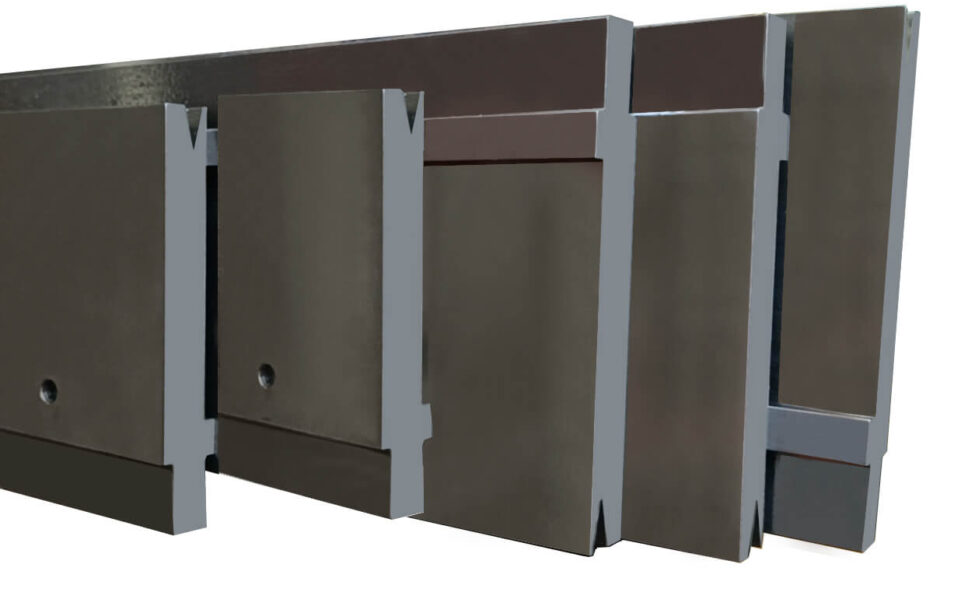

          Trump Press Brake Tooling Segments

          Standard segment tooling or custom segments on request

          SEND A QUOTE

            Version B

                         Version A

            How It Works?

            Bending Dies for Hydraulic Press Brake

            The European & American style Press Brake tooling can make a high performance for sheet metal bends.

            Deliver exact bending result.

            Automation with high accuracy and improve productivity

            Flexibility segmented length

            Trumpf Tooling has a Faster, easier setup process

            Applications

            Power Cabinets

            Industrial cabinet box

            Pole Fabrication

            Light Pole

            Elevator Industry

            Elevator

            FAQ- Frequently asked questions

            Air bending allows the part to springback to the desired angle. the punch pushes the workpiece into the die without pressing it against the walls. This takes less tonnage than bottom bending. Typically an air bending tool is designed with an additional 5 degrees more than the desired angle. Check with JSTMT for more press brake tooling details and Trumpf spare parts catalog.

            The material used for Trumpf press brake tool belongs to cold working die steel, and the main performance requirements include strength, toughness, and wear resistance.

            There are many materials that can be used to produce press brake tools, such as steel, alloy materials, polymer materials, and so on. However, at present, most of the materials for the production of press brake tools are steel, including T8 steel, T10 steel, 42CrMo, and Cr12MoV.

            Offset dies are designed to form two bends with one stroke. The measurement is needed as the in-to-out dimension from one plane to another. Talk to an engineer at JSTMT to discuss application and required tonnages.

            It depends on the type of lower die. An acute die is measured from center radius to center radius. A 90 or 85 degree die is measured from the theoretical intersection to theoretical intersection. Talk to an engineer at JSTMT for more press brake tooling details.

            On a punch it is from the tools shoulders down to the tip of its radius. (Does not include the tools tongue) On a die it is from the tools base up to the top of the die (does not include tools tongue). Check with Power Brake Dies for more press brake tooling details.

            The material thickness value is squared, multiplied by 575, divided by the die-opening width inch value and then divided again by 12 inches. The tonnage per inch is now calculated. You can then multiply the value by the bend length.

            Offset dies are designed to form two bends with one stroke. The measurement is needed as the in-to-out dimension from one plane to another. Talk to an engineer at Power Brake Dies to discuss application and required tonnages.
