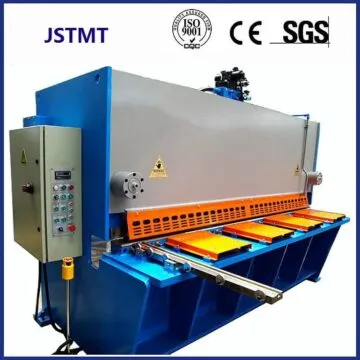

Guillotine shear is a shearing machine for cutting metal plates, we offer sheet metal guillotine shears, including Hydraulic, CNC, and manual Guilltiones. The Guillotine metal shear has a variable rake angle adjustment to ensure high precision & efficient cuts. It has a rapid Blade Gap adjustment and 4 Edge high carbon high chrome Quality shear blades with stable quality. the hydraulic guillotine shear has high components & high efficiency cutting features for every job. It is the most common machinery for guillotine metal works with a Shadow line & well designed finger guard for a clear view of the cutting line.

How does the guillotine shear work?

The sheet metal guillotine shearing machine includes a shear table, holding device, shear blades, & motorized back gauge. the hold-down cylinder is driven by the hydraulic system to press the steel plate. the left and right oil cylinders to drive the moving blade up and down movement. The Adjustable rake cutting angle is for different cutting thickness & rapid blade gap is manually adjusted. and the Safety foot switch operation Top blades will automatically return to the top position when the foot is removed from the foot pedal.



What is the material and capacity of Guillotine shear?

we adopt high quality sheet metal guillotine shear blades steel material: H13, SKD11, 9SrSi,6CrW2Si. The Ras shearing Machine has a wide variety of blade lengths up to 6 m and thickness 20-30 mm. The NC numerical control allows shear angle auto-adjustable. It has a Front operated motorized back gauge of 750mm, and a 1000 mm side squaring arm. If you need a heavy duty guillotine metal shear machine, mechanical shear, or 1000 ft guillotine, please check us for your cost-saving 20%.

Guillotine Metal Shear Machine Configuration

Controller HT071: Italy Maper

Pump-US Vickers

Valves-Italy Aron

Hydraulic-Aron Design Manifold+Valer

Fitting-Tubing-European Type

Electrical-Telemechanique-Schninder

Servo motor

4 Edge high carbon high chrome shear blade

Customized your require now

SEND A QUOTE

    HT071 Italy

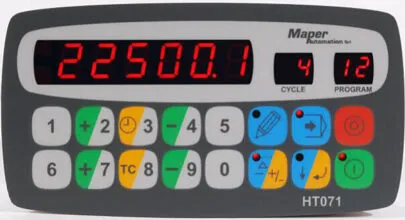

    Italy HT071 (Position and programming with Inverter)

    Can position a motor driven axis in manual, semiautomatic, automatic and automatic continuous mode.

    Store up to 99 programs, Each program include up to 20 positions

    X-axis intelligent position, Accuracy +0.1mm

    One Key Back up/restore, mm/inch

    SEND A QUOTE

      Front Side

      The ball-type front support reduces friction between the plate and the table, ensuring a smooth plate surface.

      Ball support front Table

      1 Metel Side squaring arm with disappearing stops

      SEND A QUOTE

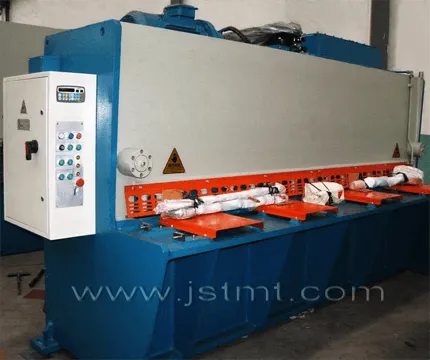

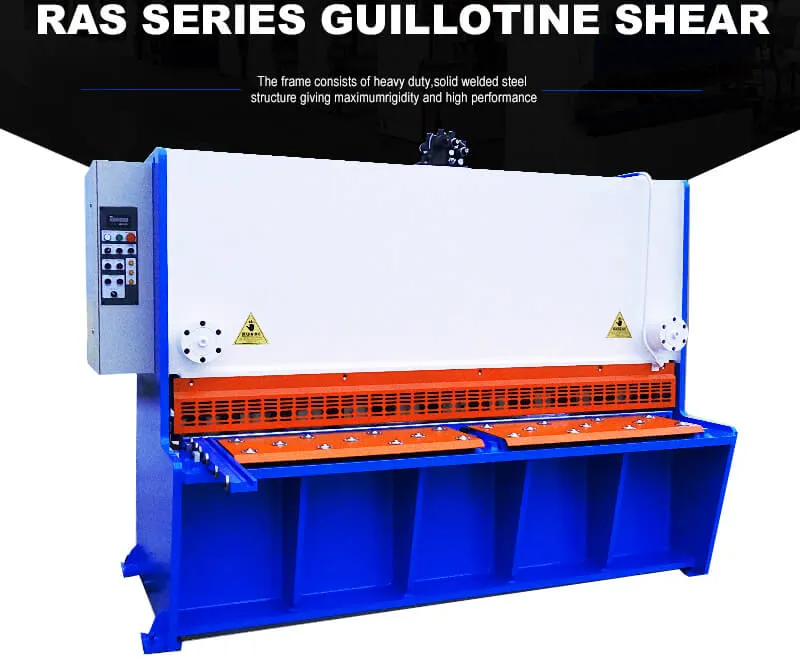

        guillotine shear-1
        back side

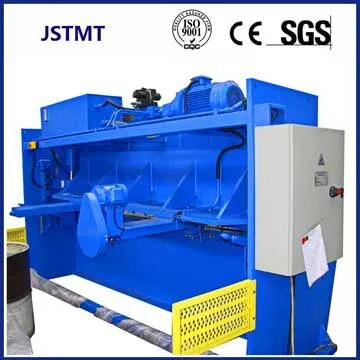

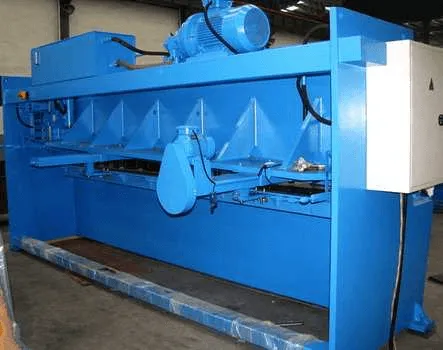

        Metal Guillotine Back Side View

        Front operated motorized back Gauge range to 750mm

        Shadow line & well designed finger guard for a clear view of cutting lin

        SEND A QUOTE

          Adjustable Cutting Angle

          The optimum rake angle is set to suit the different materials and thinckness being sheared.

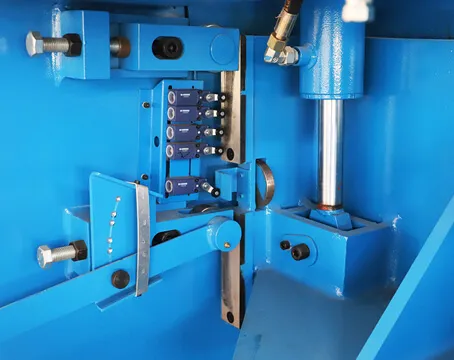

          Variable rake angle adjustment (1-3 o )

          SEND A QUOTE

            Rake angle

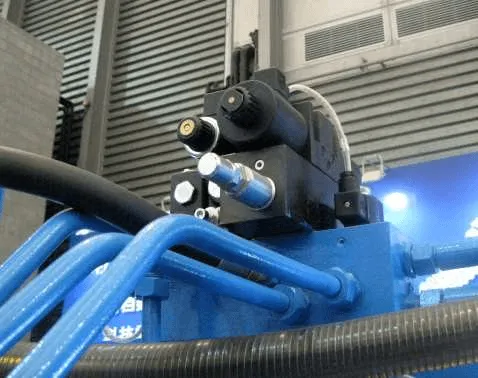

            Italy valve

            Tube Fitting

            The integrated Tube fitting will reduce pipe connection and be more stable with high components.

            Valve-Aron (Italy)

            Fitting-Tubing-European Type

            SEND A QUOTE

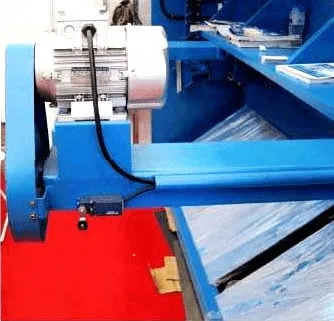

              Servo Motor

              a servo motor aims to achieve a desired position with precision.

              Servo Motor offers constant torque at higher speed

              High ratio of torque to inertia.

              High acceleration with high efficiency

              SEND A QUOTE

                servo motor

                Hydraulic Guillotine Shearing Machine Specifications

                Specification Unit RAS
                156                		 RAS
                256                		 RAS
                326                		 RAS
                328                		 RAS
                376                		 RAS
                406                		 RAS
                2510                		 RAS
                3210                		 RAS
                2513                		 RAS
                3213                		 RAS
                3713                		 RAS
                4013                		 RAS
                2516                		 RAS
                3216                		 RAS
                4016                		 RAS
                2520                		 RAS
                3220
                Cutting Capacity mm 6.5 6.5 6.5 8 6.5 6.5 10 10 13 13 13 13 16 16 16 20 20
                Cutting Length mm 1550 2550 3200 3200 3700 4000 2500 3200 2500 3200 3700 4000 2500 3200 4000 2500 3200
                Variable Cutting Angle mm 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o 1o-3o
                No of Plate Holders pcs 8 14 17 17 19 23 12 17 12 18 21 23 12 18 23 10 15
                No of Stroke/min SPM 14/19 11/17 11/17 9/15 8/10 8/10 6/9 6/9 6/9 5/9 5/7 4/6 5/7 6/11 4/6 4/5 4/5
                Clamp Force KN 40 75 95 100 110 130 120 120 120 180 210 230 140 200 250 200 300
                Cutting Force KN 170 170 170 200 250 250 250 330 400 550 600 650 650 650 750 1000 1000
                Back gauge Stroke mm 750 750 750 750 750 750 750 750 750 1000 1000 1000 1000 1000 1000 1000 1000
                Motor KW 7.5 7.5 7.5 7.5 11 11 15 15 18.5 18.5 18.5 18.5 22 30 30 37 37
                Weight(Approx) Tons 2.8 4.5 6 6.5 7.5 9 6.8 8 7 9.5 13.5 15 13 15 18 18 20
                Working Height mm 800 800 880 880 900 900 900 900 930 930 1000 1000 1000 1000 1000 1000 1000
                Length mm 2230 3140 3750 3750 4480 4830 3245 3855 3285 3855 4350 4855 3440 4010 5010 3440 4010
                Width mm 1170 1740 1770 1770 1840 1840 1830 1830 1830 1830 1830 1830 1940 1940 1980 1980 1980
                Height mm 1750 2040 2150 2150 2100 2100 2390 2390 2390 2390 2390 2390 2830 2830 2830 2830 2830

                How guillotine shears Work?

                Sheet Metal Guillotine Shear Machine Advantages

                Variable rake angle adjustment (1-3o )

                Rapid Blade Gap adjustment

                Front operated motorized back Gauge range to 750mm

                1 Metel Side squaring arm with disappearing stops

                Independent clamping of hold downs

                 Applications for Guillotine Metal Work

                Strips cutting

                cutting Strips

                Sheet Plates

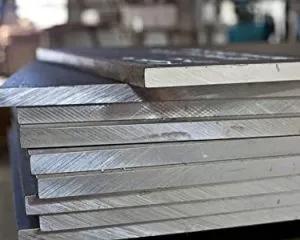

                sheet cuts

                Metal Lader

                Steel Plate

                FAQ- Frequently asked questions for guillotine metal cutter

                A sheet metal guillotine Shear Machine is an industrial shear to cut metal sheets into strips with different shearing lengths. Guillotine shears are commonly used in metal fabrication, manufacturing, and efficient sheet metal plate cutting. They can cut a wide range of materials, including mild steel, aluminum, brass, copper, and plastic sheets.

                The sheet metal guillotine cutter includes hydraulic, mechanical, and pneumatic shears. Hydraulic shears use hydraulic cylinders to apply force to the blade, while mechanical shears use a mechanical lever system to apply force. It is driven by the hydraulic motor for the press. It cuts the sheet metal with a fixed lower blade and moving upper blades that travel in the guide route. Pneumatic shears use compressed air to power the cutting process.

                Swing beam shears and guillotine shears are used for sheet metal cuts in the metal fabrication industry. Shearing is performed by cutting through a piece of sheet metal with a blade that's most often affixed to a tool or machine. When choosing a guillotine shear, you can consider things like the blade size, shearing capacity, control system, material type, and maintenance and service requirements

                Swing beam Shearing Machine：

                • Movements： Swing Beam Shear moves with the upper blade in a circular arc.
                • Blade Type: 2 side cutting edges for top blades, and 4 side edges for lower blades.
                • Cutting Capacity: Cutting medium to thick metal sheets, generally ranging from 4mm to 20mm or more.
                • Accuracy:  Provide a higher level of cutting accuracy and precision.

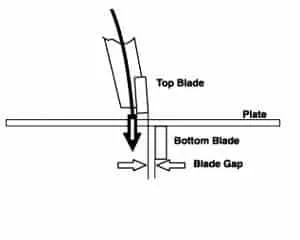

                SwingBeam Shear blade design
                Swing Beam Shear blade design



















                Guillotine Shearing Machine:

                • Guillotine shear feathers a variable rake angle.
                • Movement: Guillotine shears make straight cuts, the upper blade moves up and down uprightly and the bottom blade is fixed on the worktable.
                • Blade Type: 4 side cutting edges for top blades, and 4 side edges for lower blades.
                • Cutting Capacity: Cutting thin to thick metal sheets, with a wider range of thicknesses compared to swing beam shears.
                • Accuracy: Guillotine shears can produce accurate cuts

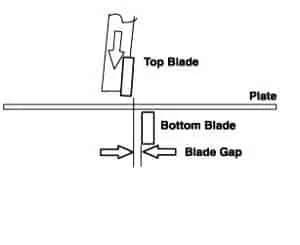

                Guillotine-shear blade design
                Guillotine-shear blade design

                Most of the hydraulic sheet metal shear can cut 4-25mm thickness

                Tensile strength can be defined as the maximum stress that a material can bear before breaking when it is allowed to be stretched or pulled.

                Physical Properties             Metric                                           English
                Machinability                          18.0 - 65.0 %                                 18.0 - 65.0 %
                Shear Modulus                       62.1 - 86.5 GPa                             9000 - 12600 ksi
                Shear Strength                       74.5 - 597 MPa                             10800 - 86600 psi
                Izod Impact                            16.3 - 208 J                                    12.0 - 153 ft-lb
