LVD press brake tooling is a leading bending tool for LVD strippit press brake, we custom made a comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters, accessories for common bends. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.

Press brake and tooling

LVD press brake tooling supports a leading innovative level with top-quality bends. LVD Bending Machine has a progressive radius V-dies on both sides of the V opening. It can reduce the friction between the material and press brake dies. This unique design reduces the friction between the material and the die. It can assure the accurate bend angle during the entire bending length. It has wear resistance and durable feathers for a long time usage life.

The clamp system supports a flexible quick change for hydraulic & CNC LVD press brakes. our LVD bending machine can meet all tool automation with intelligent software. We offer full lines of standard LVD tooling and special tooling upon your request. Should you have any inquiries, welcome contact us for a custom made press brake tooling and bending solutions.

Filter

 Press Brake Tooling Types

Promecam-Amada Press brake Tooling

Wila Trumpf Press Brake tooling

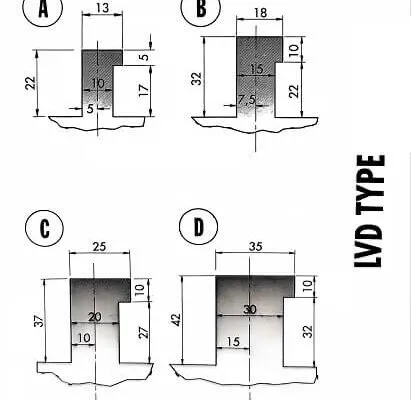

LVD Type

Colly Type

Wilson Type

Standard Press Brake Punch and Die set

Special Tools

Press Brake Tooling Catalogue

Custom Press Brake Tool Now

SEND A QUOTE





    Press brake cabinets

    Press Brake Tooling Storage Racks

    Press brake Tooling cabinet for store different type of tools.

    Easy maintainance.

    Tooling Retrofitting

    Various Hook style

    European precison style
    NC quick clamp

    Fast Clamp

    Fast clamp with quick tool change for multiple bends

    One touch for install and remove punches.

    Crowning System

    Our tooling system can fit with crowing system

    crowning system
    Tools

    Press Brake Tooling

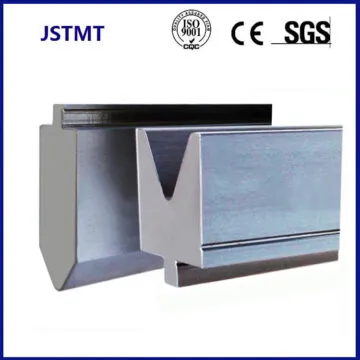

    Standard punch+Multi V Dies, CNC press brake tooling

    Press brake forming Custom Tooling supported

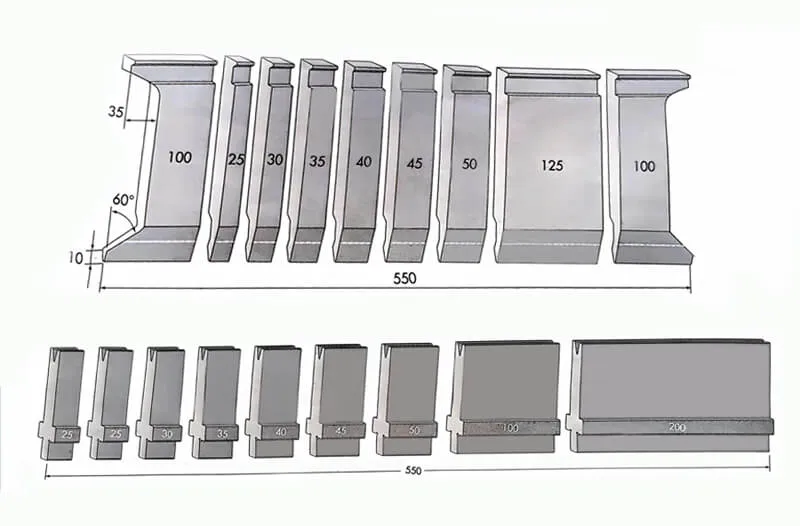

    Press Brake Tooling Segments

    Punch and die with 415/835mm standard segments

    How It Works?

    Bending Dies for Hydraulic Press Brake

    The European & American style Press Brake tooling can make a high performance for sheet metal bends.

    Custom Complex Forming

    Automation with high accuracy

    Flexibility segmented length

    Suitable for all press brakes and all bending applications.



    Applications

    Power Cabinets

    Industrial cabinet box

    Pole Fabrication

    Light Pole

    Elevator Industry

    Elevator

    FAQ- Frequently asked questions

    The material used for the press brake tool belongs to cold working die steel, and the main performance requirements include strength, toughness and wear resistance.

    There are many materials that can be used to produce press brake tools, such as steel, alloy materials, polymer materials, and so on. However, at present, most of the materials for the production of press brake tools are steel, including T8 steel, T10 steel, 42CrMo, and Cr12MoV.

    Air bending is bending your material past the desired angle and allowing the part to springback to the desired angle. This takes less tonnage than bottom bending. Typically an air bending tool is designed with an additional 5 degrees more than the desired angle. Check with JSTMT for more press brake tooling details.

    Gooseneck Punches are for forming channel shapes in two strokes or for forming special shapes where a straight punch would interfere.

    Offset dies are designed to form two bends with one stroke. The measurement is needed as the in-to-out dimension from one plane to another. Talk to an engineer at JSTMT to discuss application and required tonnages.

    It depends on the type of lower die. An acute die is measured from center radius to center radius. A 90 or 85 degree die is measured from the theoretical intersection to theoretical intersection. Talk to an engineer at JSTMT for more press brake tooling details.

    On a punch it is from the tools shoulders down to the tip of its radius. (Does not include the tools tongue) On a die it is from the tools base up to the top of the die (does not include tools tongue). Check with Power Brake Dies for more press brake tooling details.

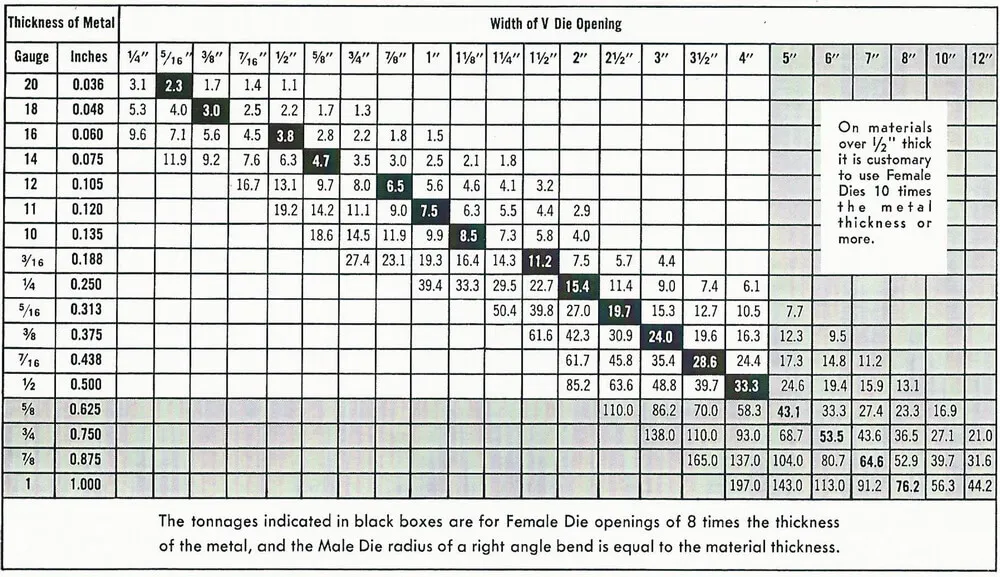

    The material thickness value is squared, multiplied by 575, divided by the die-opening width inch value and then divided again by 12 inches. The tonnage per inch is now calculated. You can then multiply the value by the bend length.

    Offset dies are designed to form two bends with one stroke. The measurement is needed as the in-to-out dimension from one plane to another. Talk to an engineer at Power Brake Dies to discuss application and required tonnages.
