How to Configure a Complete Fiber Laser Cutting System

Introduction

A fiber laser cutting machine is only one part of an efficient sheet metal production line. To achieve stable cutting quality, high productivity, and long-term reliability, manufacturers must configure the correct auxiliary equipment alongside the laser system.

A complete fiber laser cutting solution typically includes an industrial water chiller, air compressor, exhaust fan, electrical control system, and other supporting components. Each piece of equipment plays a critical role in protecting the laser source, maintaining cutting precision, and reducing operating costs.

As a professional manufacturer of sheet metal fabrication equipment, JSTMT provides complete laser cutting solutions rather than standalone machines. This guide explains how to configure a fiber laser cutting system correctly and shares a recent project delivered to a customer in the UAE.



 Why a Complete Fiber Laser Cutting System Matters

Many buyers focus only on laser power when selecting a machine. However, overall cutting performance depends on how well the auxiliary equipment is matched to the laser system.

A properly configured system offers several advantages:

Stable laser source temperature
Better cutting edge quality
Reduced machine downtime
Longer equipment service life
Lower maintenance costs
Improved production efficiency

Instead of purchasing individual components separately, many manufacturers prefer a complete, factory-tested solution to simplify installation and commissioning.



Core Components of a Fiber Laser Cutting System

A complete laser cutting system consists of more than the cutting machine itself.

Equipment	Function
Fiber Laser Cutting Machine	High-speed CNC metal cutting
Industrial Water Chiller	Maintains stable laser temperature
Air Compressor	Supplies compressed air for cutting
Exhaust Fan / Fume Extraction	Removes smoke and metal dust
Electrical Control Cabinet	Stable power distribution
Optional Voltage Stabilizer	Protects electrical components

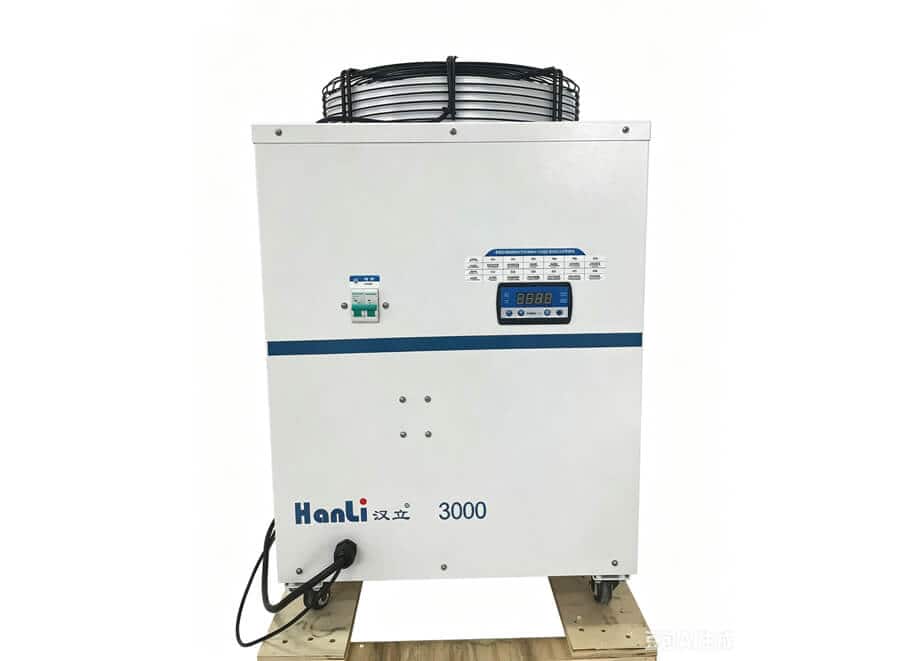

Industrial Water Chiller – Protecting the Laser Source

The laser source generates significant heat during operation. Without effective cooling, cutting accuracy and equipment lifespan can be greatly reduced.

An industrial water chiller helps:

• Maintain constant operating temperature
• Improve laser stability
• Extend laser source life
• Reduce thermal distortion
• Support continuous production

The chiller capacity should always match the laser power and production environment.

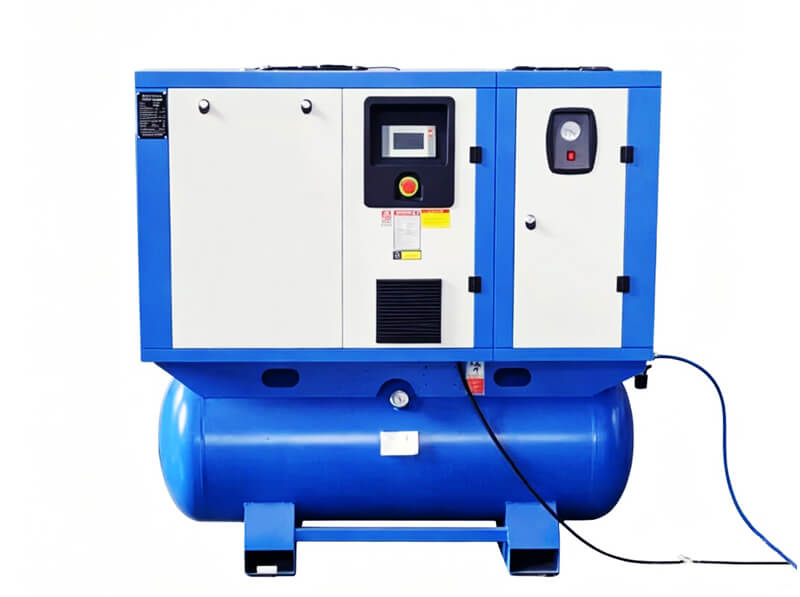

Air Compressor – Improving Cutting Quality

Compressed air is one of the most important auxiliary systems for fiber laser cutting.

A properly selected air compressor helps:

• Remove molten metal
• Produce smoother cutting edges
• Improve cutting speed
• Reduce oxidation
• Lower operating costs compared with nitrogen in certain applications

The required air pressure and flow depend on material type, sheet thickness, and laser power.



Exhaust System – Creating a Cleaner Production Environment

Laser cutting produces smoke, fine dust, and metal particles that should be removed immediately.

An industrial exhaust system provides:

• Cleaner workshop conditions
• Better operator safety
• Protection for machine components
• Improved maintenance intervals

For high-volume production, an efficient exhaust system is essential.



Engineering Considerations Before Configuration

Every manufacturing facility has different production requirements.

Before selecting equipment, our engineering team evaluates:

• Material type (carbon steel, stainless steel, aluminum, galvanized steel)
• Material thickness
• Maximum sheet size
• Daily production capacity
• Available factory power supply
• Compressed air requirements
• Future production expansion

These factors determine the most suitable laser power and auxiliary equipment configuration.



Recommended Equipment Configuration

Laser Power	Recommended Chiller	Air Compressor	Exhaust System
1.5 kW	Standard Industrial Chiller	Standard Air Compressor	Standard Exhaust Fan
3 kW	Medium Capacity Chiller	High Efficiency Compressor	Industrial Exhaust System
6 kW	Heavy Duty Chiller	High Pressure Compressor	Heavy Duty Exhaust System
12 kW+	Large Industrial Cooling System	Industrial Compressor	Advanced Dust Extraction



Engineering Notes from JSTMT

Based on our project experience, many customers initially focus only on the laser cutting machine while underestimating the importance of auxiliary equipment.

For example, insufficient cooling capacity may cause unstable laser output during continuous production, while an improperly sized air compressor can reduce cutting quality and increase operating costs.

Our engineers recommend selecting the complete system as a package rather than purchasing components separately. Factory-tested configurations reduce installation time and ensure all equipment operates together efficiently from the first day of production.



Recent Project: Complete Fiber Laser Cutting Solution Delivered to the UAE

Recently, JSTMT completed the shipment of a complete fiber laser cutting solution for a sheet metal manufacturer in the United Arab Emirates.

The delivered equipment included:

• Fiber Laser Cutting Machine
• Industrial Water Chiller
• Air Compressor
• Industrial Exhaust Fan
• Hydraulic Cylinders for Press Brake
• Accessories and Spare Parts

Before shipment, every component underwent factory inspection, system testing, and packaging verification to ensure reliable overseas transportation.

Suggested image placement:

📷 Machine final inspection

📷 Water chiller

📷 Air compressor

📷 Exhaust fan

📷 Packing process

📷 Container loading

📷 Shipment completed

Caption example: Complete fiber laser cutting system prepared for shipment to a customer in the UAE.



Why Manufacturers Choose Complete Solutions

Purchasing a complete production solution from one supplier provides several benefits:

• Equipment compatibility
• Faster installation
• Simplified technical support
• Easier spare parts management
• Lower overall project cost
• One engineering team responsible for the complete system

For international customers, this also reduces procurement complexity and improves after-sales service efficiency.



Related Sheet Metal Fabrication Equipment

A complete sheet metal production line often includes additional equipment such as:

Fiber Laser Cutting Machine
Laser Cutting Machine
CNC Press Brake
Hydraulic Press Brake
Press Brake Tooling
Hydraulic Shearing Machine
Air Compressor

These machines work together to improve production efficiency from cutting to bending and final fabrication.



Conclusion

Configuring a complete fiber laser cutting system requires more than selecting the right laser power. Matching the laser cutting machine with the correct water chiller, air compressor, exhaust system, and supporting equipment is essential for achieving reliable performance, high cutting quality, and long-term production efficiency.

With extensive experience in sheet metal fabrication equipment, JSTMT provides complete engineering solutions tailored to different production requirements. From equipment selection and factory testing to international shipment and technical support, we help manufacturers build efficient and dependable production lines.
