High-Precision Sheet Metal Solutions for HVAC Manufacturing
HVAC manufacturers require high-precision sheet metal fabrication equipment to produce air conditioning cabinets, ventilation systems, air ducts, and industrial climate control components. JSTMT provides complete HVAC manufacturing solutions combining fiber laser cutting machines, CNC press brakes, and custom tooling to improve productivity, bending accuracy, and production consistency.
Industry Applications
AC Enclosures & Cabinets：Achieve perfect seams and weather-resistant finishes for outdoor and indoor units

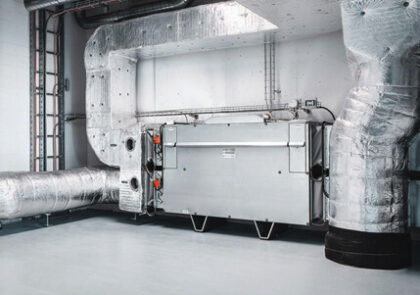

Air Handlers & Heaters：High-tolerance bending for internal heat exchangers and structural frames

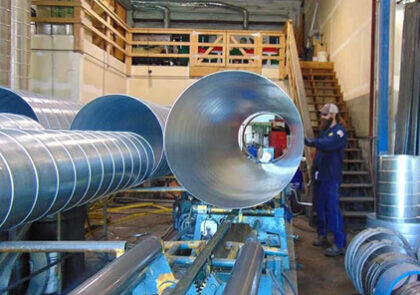

Ventilation Ductwork: Rapid production of air ducts, flanges, and connectors with consistent accuracy.

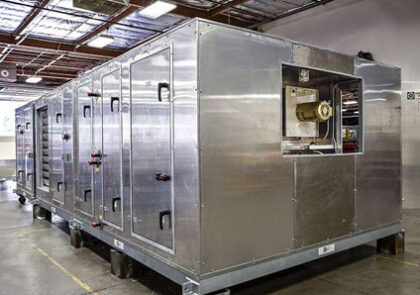

Industrial Air Handlers: Heavy-duty machinery for large-scale industrial climate control systems.

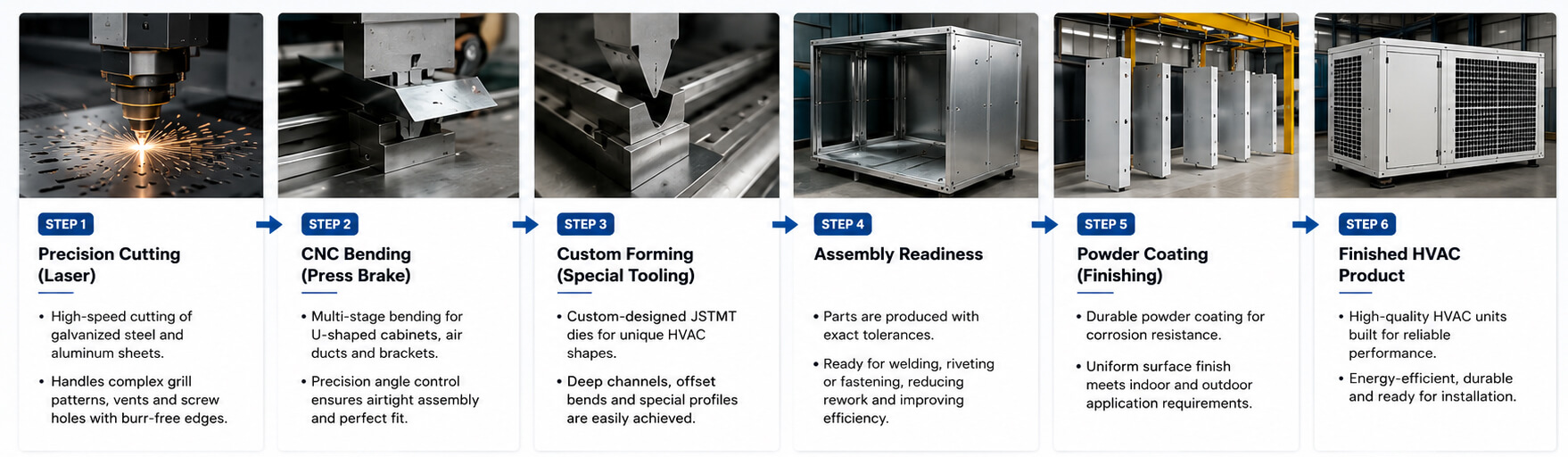

The HVAC Manufacturing Process & Recommended Equipment
Step 1: Precision Sheet Metal Cutting

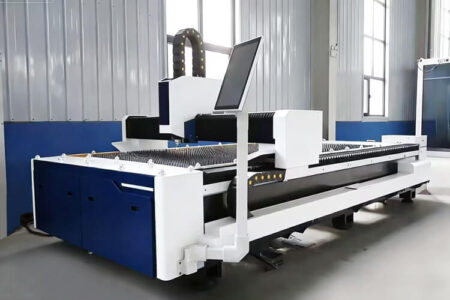

Recommended Equipment: Fiber Laser Cutting Machine
HVAC cabinets, air ducts, and ventilation components typically start with galvanized steel or aluminum sheets. Fiber laser cutting machines provide high-speed processing, clean edges, and accurate hole positioning for vents, louvers, and assembly features.
Benefits
✔ Burr-free cutting quality
✔ High material utilization
✔ Ideal for 0.5–2.0 mm galvanized steel sheets
High speed ,high Precion Laser Cutting Machine
Step 2: CNC Bending & Forming
Recommended Equipment: CNC Press Brake
After cutting, sheet metal parts are bent into HVAC cabinets, internal brackets, duct sections, and structural frames. CNC press brakes ensure consistent bend angles and accurate dimensions for airtight assembly.
Benefits
✔ High-speed CNC backgauge positioning
✔ Consistent bending accuracy
✔ Reduced assembly errors
Step 3: Specialized Forming Operations
Recommended Equipment: Custom Press Brake Tooling

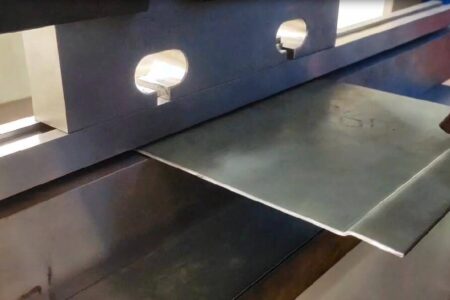

Certain HVAC products require offset bends, deep channels, return flanges, and special profiles. Custom tooling allows manufacturers to produce complex shapes efficiently while maintaining dimensional consistency.
Benefits
✔ Supports custom HVAC profiles
✔ Protects coated and galvanized materials
✔ Improves repeatability in mass production

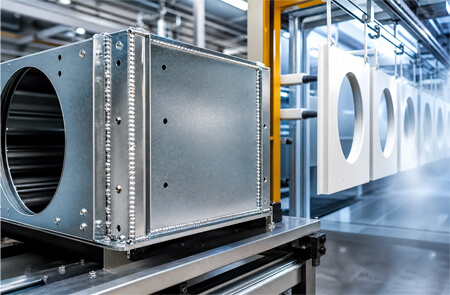

Step 4: Assembly & Finishing
After forming, components move directly to welding, riveting, powder coating, and final assembly. Precision fabrication ensures smooth assembly and minimizes rework during production.
Results
✔ Improved production efficiency
✔ Reduced manufacturing costs
✔ Consistent product quality
Assembly and welding parts
Why Choose JSTMT for HVAC?
Engineering Excellence for Your Factory
✔ Optimized for Galvanized Steel Processing
Machine configurations designed to handle the spring-back characteristics and surface requirements of HVAC materials.
✔ Reliable 24/7 Production Performance
Heavy-duty machine construction ensures stable operation in continuous manufacturing environments.
✔ Custom Tooling Expertise
20+ years of experience in special tooling solutions for HVAC cabinets, ducts, enclosures, and structural components.
Explore our complete Sheet Metal Industry Solutions to see how we customize our fiber lasers and CNC press brakes for heavy plate fabrication, electrical cabinets, and precision engineering.
HVAC Manufacturing Project Gallery
Showcase examples of HVAC components and assemblies produced using JSTMT equipment:
✔ Precision-bent air conditioning cabinet panels
✔ Laser-cut ventilation grilles and duct components
✔ HVAC electrical enclosures and structural frames
✔ Finished commercial HVAC units
✔ Production-ready sheet metal assemblies
Ready to Upgrade Your HVAC Production Line?
Share Your Production Requirements:
✔ Product Type
✔ Material Thickness
✔ Production Capacity
✔ Production Requirements
Our engineers will recommend the most suitable laser cutting, bending, and tooling solution for your factory.
