How does a CNC Press Brake Work?
The CNC press machine includes a frame structure, intelligent control with programming software, and tools. It uses a hydraulic servo system and a granting ruler for closed-loop control of the bends. This CNC metal brake can adjust the slide stroke and back gauge through the custom punch and die styles. It adopts a safety laser with finger protection and clamping for quick release. and software to write Profile and V bends, American, European Style CNC Press Brake Tooling.CNC hydraulic press brake has a friendly panel with a multi-language for more options. One set of matching punch and die tools is included.
What are the disadvantages of CNC press brake?
The CNC Brake Press can provide advanced automated solutions for bending metals. It has CNC programmable controls for easy bends with speed and high precision. As a leading CNC press brake manufacturer, we possess advanced press brake bending technology. If you are not sure of the tonnage or CNC controller suitable for various metal sheet thicknesses and process accuracy? Please contact JSTMT expert for a guide.
Standard Configuration

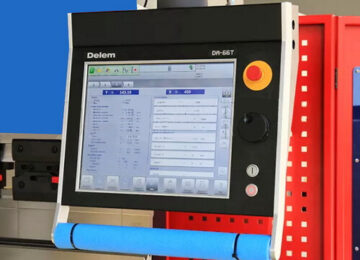

CNC Controller-Delem DA66T
The efficient CNC retrofit optimizes the bending cycle, and working precision, reduces the setup time for work steps, and enhances the batch efficiency of the bending process.

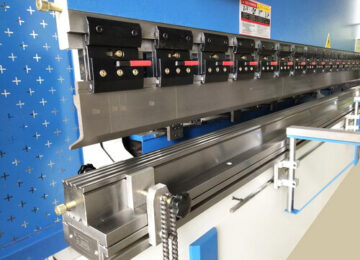

Quick Clamp
It offers solutions for swift setup and changeover times, and deflection mitigation.
What is the laser safety on a press brake?
The safety features of the Sentinel protection system include a DSP modified laser safety device installed on the upper beam of the press brake.

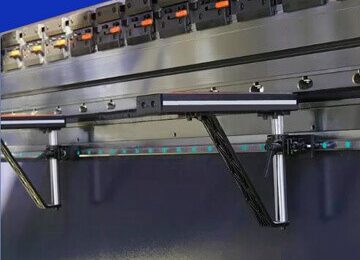

Movable Front Arm

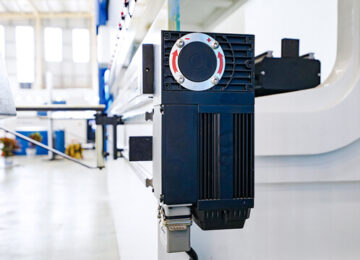

Crowning System
A motorized axis that adjusts the curvature of the lower beam of a press brake during the bending. The compensates for the deflection can help to achieve perfect bending results with equal and consistent angles along the length of the bend.

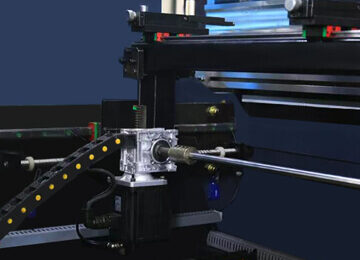

Sevo Controlled Back Gauge
CNC backgauges are mechanical systems that move along one, two, or multiple axes to position a piece of metal.
CNC Press Brake Tooling
It is used in bending machine to form and process sheet materials. Different molds styles are use for various metal bending job/parts.
CNC Press Brake for Sale
|
Model WC67Y/K |
Force |
Bending length |
Vertical distance (mm) |
Throat depth (mm) |
Stroke |
Max. opening (mm) |
Main power (Kw) |
Weight Approx. (Kg) |
Dimension(L×W×H)mm |
|
40T/2200 |
400 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
2750 |
2200×1200×1910 |
|
40T/2500 |
400 |
3200 |
1850 |
230 |
100 |
320 |
5.5 |
3000 |
2500×1200×1910 |
|
50T/2500 |
500 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
3400 |
2500×1210×2000 |
|
63T/2500 |
630 |
2500 |
1900 |
250 |
100 |
320 |
5.5 |
4000 |
2500×1300×2210 |
|
63T/3200 |
630 |
3200 |
2560 |
250 |
100 |
320 |
5.5 |
4800 |
3200×1300×2210 |
|
80T/2500 |
800 |
2500 |
1990 |
300 |
100 |
320 |
7.5 |
5000 |
2500×1400×2300 |
|
80T/3200 |
800 |
3200 |
2560 |
320 |
100 |
350 |
7.5 |
6020 |
3200×1500×2300 |
|
80T/4000 |
800 |
4000 |
2960 |
320 |
100 |
350 |
7.5 |
7000 |
4000×1500×2400 |
|
100T/2500 |
1000 |
2500 |
1980 |
320 |
150 |
350 |
11 |
6000 |
2500×1600×2400 |
|
100T/3200 |
1000 |
3200 |
2540 |
320 |
150 |
400 |
11 |
6500 |
3200×1600×2600 |
|
100T/4000 |
1000 |
4000 |
2950 |
320 |
150 |
400 |
11 |
8000 |
4000×1600×2700 |
|
125T/3200 |
1250 |
3200 |
2550 |
320 |
150 |
400 |
11 |
6800 |
3200×1600×2600 |
|
125T/4000 |
1250 |
4000 |
2940 |
320 |
150 |
400 |
11 |
8200 |
4000×1600×2700 |
|
160T/3200 |
1600 |
3200 |
2540 |
320 |
200 |
460 |
11 |
11000 |
3200×1700×2700 |
|
160T/4000 |
1600 |
4000 |
2940 |
320 |
200 |
460 |
11 |
11500 |
4000×1700×2800 |
|
160T/5000 |
1600 |
5000 |
3940 |
320 |
200 |
460 |
11 |
14000 |
5000×1900×3100 |
|
160T/6000 |
1600 |
6000 |
4940 |
320 |
200 |
460 |
11 |
18500 |
6300×1900×3200 |
|
200T/3200 |
2000 |
3200 |
2540 |
320 |
200 |
460 |
11 |
11000 |
3200×1950×2800 |
|
200T/4000 |
2000 |
4000 |
2940 |
320 |
200 |
460 |
11 |
12200 |
4000×1950×2800 |
|
200T/5000 |
2000 |
5000 |
3940 |
320 |
200 |
460 |
11 |
14500 |
5000×1950×3000 |
|
200T/6000 |
2000 |
6000 |
4940 |
320 |
200 |
460 |
11 |
18500 |
6000×1950×3300 |
|
250T/3200 |
2500 |
3200 |
2530 |
400 |
250 |
590 |
18.5 |
17500 |
3250×2000×3200 |
|
250T/4000 |
2500 |
4000 |
2930 |
400 |
250 |
590 |
18.5 |
18700 |
4000×2000×3400 |
|
250T/5000 |
2500 |
5000 |
3940 |
400 |
250 |
590 |
18.5 |
22000 |
5000×2000×3400 |
|
250T/6000 |
2500 |
6000 |
4930 |
400 |
250 |
590 |
18.5 |
26500 |
6000×2000×3400 |
|
300T/3200 |
3000 |
3200 |
2520 |
400 |
250 |
590 |
22 |
19500 |
3200×2000×3450 |
|
300T/4000 |
3000 |
4000 |
2920 |
400 |
250 |
590 |
22 |
21500 |
4000×2000×3450 |
|
300T/5000 |
3000 |
5000 |
3920 |
400 |
250 |
590 |
22 |
24000 |
5000×2000×3450 |
|
300T/6000 |
3000 |
6000 |
4920 |
400 |
250 |
590 |
22 |
29000 |
6000×2000×3450 |
|
400T/4000 |
4000 |
4000 |
2910 |
400 |
250 |
590 |
30 |
23000 |
4000×2180×3400 |
|
400T/5000 |
4000 |
5000 |
3910 |
400 |
250 |
590 |
30 |
28500 |
5000×2180×3500 |
|
400T/6000 |
4000 |
6000 |
4910 |
400 |
250 |
590 |
30 |
35000 |
6000×2180×3800 |
|
500T/5000 |
5000 |
5000 |
3900 |
400 |
250 |
590 |
45 |
44000 |
5050×3500×3700 |
|
500T/6000 |
5000 |
6000 |
4900 |
400 |
320 |
590 |
45 |
55000 |
6050×3500×3700 |
|
600T/4000 |
6000 |
4000 |
3000 |
400 |
320 |
590 |
55 |
45000 |
4050×4500×3700 |
|
600T/6000 |
6000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
60000 |
6050×4500×3700 |
|
800T/6000 |
8000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
75000 |
6300×4500×6000 |
How It Works?
CNC Press Brake Machines Advantages
The CNC metal brakes suit complex working pieces and mass productions with high effeciency.
Applications
Power Cabinets
Pole Fabrication
Elevator Industry
FAQ- Frequently asked questions
CNC press brake machines have high precision in metal works. Besides high bending and positioning accuracy, CNC press brakes are equipped with hydraulic automatic clamps to reduce labor and improve production time.
The CNC press brake has a ram repeatability of +0.01mm, with a fast setup for efficiency.
NC press brake is a numeric control tool that bends sheet metal. It uses an NC system to control the up-and-down movement of the punch and bend the metal sheet. NC is mostly two axes. It will be a manual adjustment for complex bending steps with less accuracy.
CNC press brakes are powered by an electrical or hydraulic system and have a smart program to ensure precise bending. CNC is mostly 3 or 4 axes and can be set and programmed from CNC panel controls for an easy bending operation with high accuracy.
- CNC press brakes have an advanced CNC control system.
- CNC metal brakes can store multiple toolings.
- CNC Press brake can adjust the angle and work more efficiently.
A CNC press brake operator uses a machine to bend sheet metal into various designs and profiles. They may use a press brake to manufacture tools, equipment, and other components. How to program the CNC Press Brake? The key point of CNC press brake programming is to set and add various work steps.
- Select the material's thickness, width, and type
- Choose the top and bottom tools to use
- Calculate the program
- Run the program
The problem:
Noise when pressing brake pedal
Cause of the problem:
This is most commonly caused by a blockage in the high-pressure filter.
How to fix this issue:
Unfortunately, this press brake bending problems do not have an easy solution. You will need to replace the core of the high-pressure filter.
