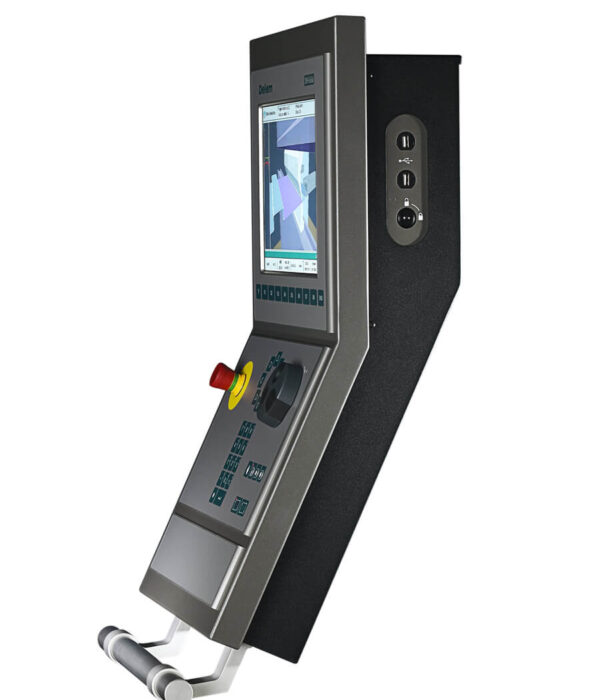

Delem DA66W 3D Graphical CNC Control System for Press Brakes
Proven embedded reliability
DAonWindows controllers feature an embedded, real-time Windows operating system for maximum reliability. Smooth start
ups ensured, even after instant shut off.
The DA-66W press brake controller
combines user-friendliness with efficient
programming and reliability. This, combined
in one strong package, increasing machine
productivity.
The latest graphics technologies enable real
scale representation within Delem’s familiar
intuitive user interface.
The system offers 2D graphical programming
that include automatic bend sequence
calculation and collision detection. Together
with self-learning databases this will lead to a
good result of the desired product.
The full 3D machine set-up includes multiple
tool stations and offers true feedback on
product feasibility and handling.
Highly effective control algorithms optimise
the machine cycle and minimise set-up time.
This makes using press brakes easier, more
efficient and more versatile then ever.
Windows® networking ensures easy
integration in your production network. The
controller can be accessed from anywhere
in the network and product data can be
stored at the desired network locations
Housed in a tough and sturdy cabinet, the
DAonWindows control is based on state-ofthe-art industrial electronics and equipped
with a high quality colour LCD (TFT) screen.
Delem’s Modusys concept and its built-in
PLC allows you to add functionality,
providing maximum scalability and
adaptivity
Delem DA66W Featuring:
• 2D graphical programming
• 3D visualisation in production mode
• 12” TFT color display
• Full Windows suite
• Integrated OEM-panel
• USB keyboard & mouse interface
• User specific application support
within the controllers’ multitasking
environment
• Sensor bending & correction
interface
Product configuration
Standard
– Colour LCD display
– 12” TFT, high brightness
– 800 x 600 pixels, 16 bit
– 600 MHz microprocessor
– Memory capacity 128 MB
– Product and tools memory 64 MB
– 3D graphics acceleration
– Standard Windows® networking
– Emergency button
– Integrated OEM-panel
– USB flash memory drive
Options
– Integrated pointing device
– Touch screen
– USB Floppy disk drive
Field options
– Part support control
– X1-X2 angle programming
– 3D product visualisation
– 2nd Modusys bus (HSB)
– Barcode reader interface
– Frame deflection compensation
– Sensor bending & correction
interface
Technical specifications DA66W
General
– Real-time embedded Windows® OS
– Stable, multitasking environment
– Instant Shut Off
– Delem Modusys compatible
– Tandem operation
Programming functions
– Alphanumeric product naming, up to
25 characters
– 2D real-scale product programming
and visualisation
– Automatic bend sequence
calculation
– Easy graphical bend sequence
swap and move
– Front part support visualisation
– One page programming table
– Graphical product and tool selection
– Programmable axis speed
– Free material programming
– Program repeat max. 9,999
– Number of steps up to 99
– Step repeat, 99 max.
– Product & tool search filter
– Millimetres / inches
– kN / Ton selection
Tooling
– Graphical tool configuration
– Multiple tool station set-ups
– Tool segmentation visualisation
– Alphanumeric tool identification, up
to 25 character
– Free graphical tool programming
– Tool adapter support
Computed functions
– Tooling safety zones
– Press force
– Bend allowance
– Crowning adjustment
– Developed length
– Bottoming force
– Hemming force
– Auto bumping calculation
– Radius programming
– Learned bend allowance table
– Angle correction database
Miscellaneous
– Machine time + stroke counter
– Error messaging system
– Diagnostic program
– Integrated help functions
– Handwheel movement of all axes
– “Teach-in” on Y and auxiliary axes
– Stock counter
– User specific applications support
– Sequencer functionality (PLC)
– Optional SoftPLC according to
IEC61131-3 standard
Interfaces
– Modusys bus (HSB) up to 8 modules
– DNC-RS 232C, bi-directional (2x)
– Network interface (100 Mb / 10Mb)
– USB (2x) for external devices
– Safety PLC interfacing
Enhanced functions
– Word processor (WordPad)
– Email client (POP3)
– Internet Explorer (web browser)
– Remote Terminal Client
– Remote diagnosis
– Analysis Tool
– PDF viewer
– On screen keyboard
When Delem DA-66W is Required:
- Advanced 3D Simulation & Collision Detection: Essential for complex, multi-bend workpieces that require full 3D offline programming and real-time visual collision checks to prevent tool or frame interference.
- High-Axis Configurations: Designed for complex setups requiring 6+1 axes or more (including independent Z1/Z2 finger movement, delta-X backgauges, or robotic integration).
- Precision Bending Applications: Critical for high-precision industries—such as medical equipment, aerospace components, server racks, and high-end stainless steel enclosures—where strict angular accuracy +- 0.1o to +-0.2o and flawless surface finishes are mandatory.
