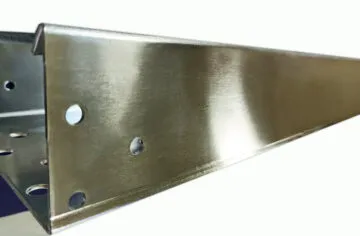

How to Bend Aluminum Sheet Metal without Cracking

Complete Guide to bend Aluminum Sheet Metal: How to Achieve Perfect Bends Without Cracking

How to Bend Aluminum Sheet Metal? Aluminum bending is significant in industrial applications due to its lightweight and durable characteristics. It offers good corrosion resistance, excellent formability, and good weldability. It is also heat treatable, making it an ideal choice for projects that require high strength.

Bending aluminum sheet metal is a common process in metalworking, and the method you use will depend on the thickness of the aluminum, the desired bend radius, the equipment you have available, and the precision required. However, Aluminum sheet bending is easy to break after bending or crack after anodizing.



How to bend Aluminium sheet metal in the best way?

What is the best way to bend aluminum sheet metal plates? Does aluminum bend easily? And how to bend aluminum without a break? As one of the Aluminum Bending Suppliers , we will let you know how to bend aluminum sheet Metal correctly in detail.



Section 1：Why Choose Aluminum for Sheet Metal Bending Operations?

Aluminum sheet bending and cutting are widely used in metal manufacturing. and it has the main reasons or benefits that we choose for aluminum bending :

• Lightweight:  It is an ideal choice for reducing the overall weight of a piece by avoiding unnecessary thickness.
• High strength aluminum alloys tend to be less ductile, making them more challenging to bend or form without cracking.
• The bendable aluminum is naturally corrosion resistant and has a balance of strength and formability, making it an ideal choice for parts exposed to harsh environmental conditions.
• It has a high elongation percentage and good cold workability. It means it can be formed without cracking.



Section 2： Core Challenges in Aluminum Bending: Preventing Cracks and Fractures

What helps to determine the right alloy for metal bending? And what alloys are the best aluminum for bending?Unlike mild steel, aluminum has a unique molecular structure that makes it prone to “crazing” or cracking if the bend radius is too tight.



Understanding the Best aluminum alloys for bending sheet metal

Can you bend aluminum alloy?It depends entirely on the alloy’s temper and the mechanical approach.

To maintain proper results, you must consider three technical variables:

1.  Alloy Grade: 3003 and 5052 alloys are highly “bendable aluminum,” whereas 6061 can be brittle and often requires a larger radius or annealing.
2. Grain Direction: To prevent failure, always try to bend transverse (across) the grain. Bending longitudinal (with) the grain increases the risk of the material snapping.
3. The Bend Radius: A general rule of thumb for aluminum is a minimum bend radius of 1x material thickness (1t) for soft alloys, increasing for harder tempers.

Expert recommendations:

Bendability	Typical Grades	Expert Recommendation
Excellent	1060, 1100	Pure aluminum with superior formability but lower strength. Best for simple bends requiring maximum ductility.
Very Good	3003	Moderate strength with excellent formability. The most widely used for general sheet metal bending applications.
Good	5052	Optimal balance of strength and formability. Considered the “golden standard” for professional sheet metal fabrication.
Fair	6061	Relatively brittle in hardened state (T6). Requires annealing to O temper before small-radius bending is possible.







The Springback in Aluminum Challenge : How to Bend Aluminum Sheet Metal

Aluminum is significantly more elastic than steel, meaning the Physics of Springback is much more pronounced. When the press brake ram releases, an aluminum part will “spring” open more aggressively than a steel part of the same gauge.

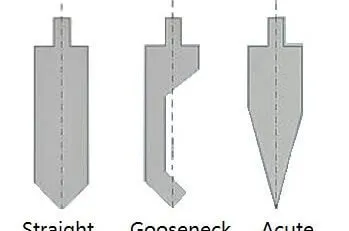

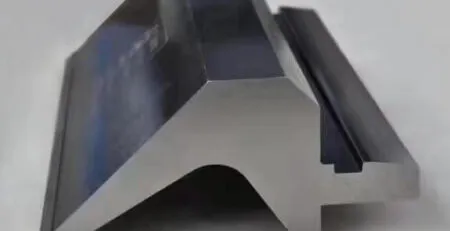

Tooling Precision: Because aluminum is a “soft” metal but has high elastic recovery, your tooling condition is critical. Using premium 42CrMo tools ensures that the punch profile remains consistent, preventing the inconsistent angles that occur when tools deform under load.

Preventing Surface Marking: Aluminum is easily scratched. Using JSTMT’s polished 42CrMo dies or specialized cloth tape helps protect the material surface during the return stroke.



JSTMT Engineering Tips for Aluminum Bending

Solution	Technical Benefit
Increase V-Die Opening	Reduces the force required and lessens the marking on the aluminum surface.
Overbending Calibration	Essential to account for the high springback rate of 5000 and 6000 series alloys.
Check for Worn Components	Worn components on your die will leave deep pressure marks on sensitive aluminum sheets.



How to bend aluminum sheet metal without breaking it

Many fabricators encounter a frustrating problem: aluminum parts that bend perfectly fine develop fine cracks in the bend area after anodic oxidation processing. This occurs because the anodized coating is inherently brittle.

• Thickness: Use the thinnest possible sheet of aluminum.
• Aluminum Grades and Impact on Bending:  For aluminum, the harder the grade, the greater the amount of spring back you will need to deal with. Usually, T1, T3, and T5 are used. T6 and T7 series are too hard and need to be annealed to 0 tempers before bending.
• Bending angle R: Try to increase the bending angle R. The larger the R angle, the higher the success rate.
• Avoid sharp bends: Use gentle curves. Sharp bends can apply excessive stress to aluminum, causing it to crack.
• Using lubricant: To bend aluminum sheet metal and prevent cracking, Apply lubrication to the bent area, which can help reduce the force needed.



What is the minimum bend radius for aluminum sheet metal

The minimum bend radius is the single most critical parameter for preventing cracks and fractures in aluminum bending. This parameter represents the smallest inside radius to which material can be bent without cracking.

Standard guidelines for aluminum sheet metal include:

•Soft Aluminum Alloys: R ≥ 1.0 × Material Thickness (1T)

•Hard Aluminum Alloys: R ≥ 2.0 × Material Thickness (2T) or greater

•Safety Margin Recommendation: Use 1.5T as a safety factor in design calculations to compensate for material batch variations and ensure consistent results across production runs.

Example Calculation: For a 2mm thick aluminum sheet in soft temper, the minimum bend radius would be 2mm (1T). For hard temper, it would be 4mm (2T) or greater.





Section 3 : Step Guid: What is the best way to bend aluminum sheet metal with cracking?

Can you bend aluminium? Bending aluminum sheets requires careful consideration of several factors, including the alloy type, thickness, bend radius, and the equipment you’ll be using.

Bending aluminum sheets can be achieved through various steps, depending on the thickness of the material and the tools available. Please follow the steps to bend aluminum sheet metal:

1. Choose the Right Aluminum Alloy for your project

3003: Highly ductile, ideal for simple bends.

5052: Stronger but still formable (common for automotive/marine parts).

Avoid: 6061-T6 (hardened) unless annealed first.



2. Setting Up the Bending Brake

Using a press brake: Hydraulic Press brake machines WC67K-160T 2500

Choose the Correct Dies: a V-die width 6–12x material thickness.

Adjust the Back Gauge to the desired distance



3. Determine the Minimum Allowable Bend Radius

Set the Bend Angle: bending brakes allow you to pre-set the desired bend angle.

This is the most critical factor for preventing cracking. Aluminum needs a larger inside bend radius than steel of the same thickness.
The minimum bend radius (R) for a given material thickness (T) is often expressed as a multiple of the thickness (e.g., 1T, 2T, 4T, or even larger for hard tempers).
Using a radius smaller than the minimum recommended will likely result in cracking.
Bending charts or material data sheets are essential resources for finding the correct minimum radius for your specific alloy and temper.

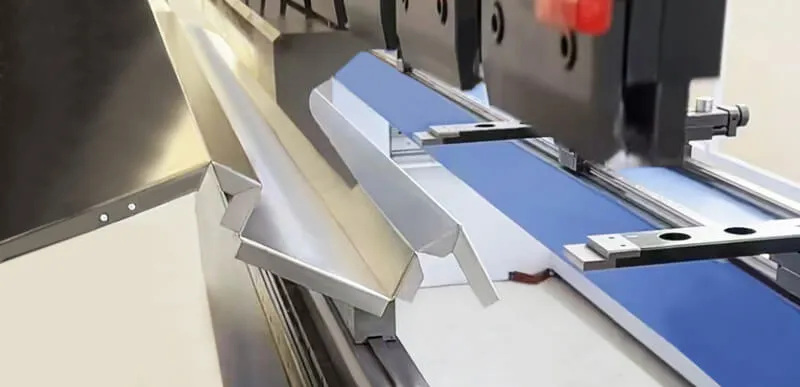

4. Bending aluminum sheets with practical solution

1.)Position the Sheet: Carefully position the aluminum sheet in the bending brake, aligning the marked bend line with the edge of the die.

2.)Preventing Springback compensation Solution: Over-bend the material by 2° to 5° beyond the target angle to compensate for springback and achieve the desired final angle.

3.) Make the Bend: Press the foot pedal, and apply pressure to bend the aluminum sheet metal to the desired angle and shape.

4.) Bending aluminum plate without cracking: To prevent cracking, the bending speed must be controlled properly, including thickness, grade, and bending angle, and sharp bends must be avoided.



5. Finish to bend aluminum sheet metal

Deburring: After bending, check for any burrs or sharp edges created during the process and remove them.



Section 4: Troubleshooting Common Aluminum Bending Problems

Bending Defects	Cause	Solution to bend aluminum sheet metal
Cracking at Bend Line	Bend radius too small or wrong alloy	Increase bend radius or switch to softer alloy (3003, 5052)
Excessive Springback	Hard alloy or insufficient overbending	Use softer temper or increase overbend angle by 2-5°
Surface Scratches	Worn tooling or inadequate protection	Replace dies or use protective cloth tape
Post-Anodize Cracking	Residual stress in bent area	Increase bend radius and apply stress relief before anodizing
