How to Install and adjust the dies of 100 ton cnc bending machine
As a worldwide market leader for sheet metal fabrication solutions, JSTMT will guide you How to install and adjust the dies of 100 ton CNC bending machine.
The Dies of 100 ton CNC bending machine is consists of many parts, so we should pay more attention to the repeated adjustment during the installation. There are 5 parts during the adjustment period as below that we need to pay more attention to:
-

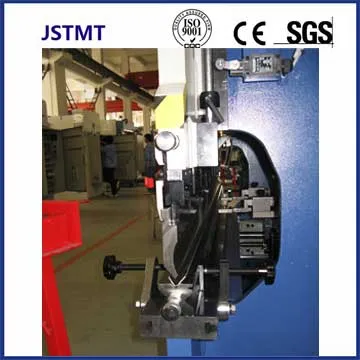

Install and adjust the Dies of 100 ton CNC Bending Machine
Before the adjustment of the machine, the performance(characters) of the machine must be adjusted first. This process must be carried out patiently and carefully.
Check whether the machine has dust and used iron chips, etc., and do more necessary cleaning to reduce the trouble in the future stage.
- Slider Stroke Adjustment
Pay attention to the thickness of the die and check whether the proportion of the upper and lower modules is normal.
Normally, the module should be controlled at the switch point of the stroke circuit, which must be highly paid attention to.
- Travel module Adjustment
The adjustment of the travel module is the main for adjusting the upper limit point of the module.
When the module reaches the highest point, set the switch, and reserve the stay position of the slider.
At the same time, when it goes down, it also needs to carry out the deceleration module to better protect the machine and the bending mold.
- Gap adjustment
Gap adjustment is to mainly measure the distance between the upper module and the lower module.
and the specific gap setting is determined according to the sheet plate thickness.
- The angle adjustments
It has a certain relationship with the product.
Generally speaking, if the mold is folded at 90 °, the middle angle must be bigger than the angle of both sides.
Then its tightness can be adjusted according to the screw. When bending, the pressure can be adjusted through the pressure gauge to avoid die edge collapse.

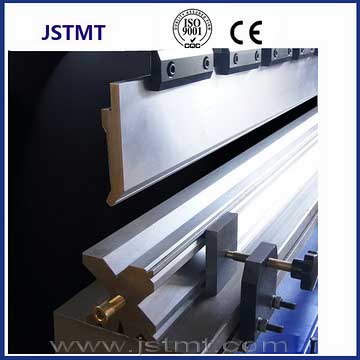

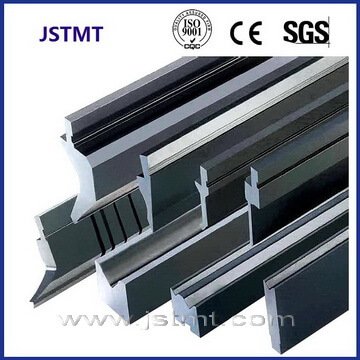

Above is 100 tons CNC bending machine installation and mold testing method. The die is divided into the upper die and lower die, which are used for sheet metal stamping and separation.
