Delem DA53T

Delem DA53T has Multiple control solutions for synchronized press brakes

The Delem DA53T is a sophisticated, compact, and highly intuitive CNC (Computer Numerical Control) system designed specifically for press brakes, particularly synchronized press brakes. It’s part of Delem’s DA-50Touch series, known for its user-friendly graphical touch screen interface. The DA-53T has a state-of-the-art complete touch control solution for synchronized press brakes. It is used for CNC press brake with a standard up to 4 axes and can be integrated into cabinets as an optional pendulum arm housing.



Its 10.1″ widescreen high resolution colour TFT, with industrial grade multi-touch technology, gives access to the proven Delem user interface. It enables direct “hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimized ergonomics throughout the entire application.

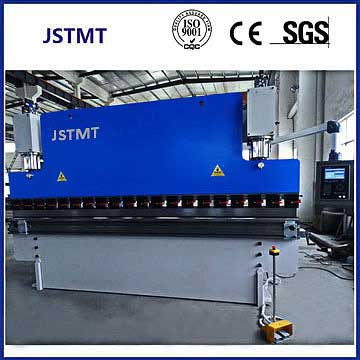

Delem DA53t CNC Press Brake
Delem DA53t CNC Press Brake

































The standard machine with DA53T control functions is Y1-Y2, X, R-axis, and crowning. The second back gauge axis can also be set as Z axis. Machine adjustment and test bends are minimal with a quick and easy program-to-production work sequence.



Delem DA53T Feathers:

    • “Hot-key” touch navigation
    • 10.1″ high resolution colour TFT
    • Up to 4 axes (Y1,Y2 + 2 aux. axes)
    • Crowning control
    • Tool/material / product library
    • Servo and frequency inverter control
    • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
    • TandemLink (option)
    • USB memory stick interfacing
    • Profile-T offline software



Delem DA53T Technical Specification:

Electrical / interfacing
– Power supply: 24V
– Opto-isolated digital I/O
– Integrated valve amplifier Y1, Y2, P
– Encoder inputs (single/diff.5V/12V)
– RS232 port for safety PLC
– USB port

Control
– Servo control
– Unipolar / frequency inverter control
– Pressure valve control
– Proportional valve control
– Crowning control
– Multiple digital function outputs

Mechanical
– Housing 373x368x122 mm
– Panel 311x222x60mm
– Design, glass surface, aluminium edge
– IP54
– Weight 9 kg (incl. housing)

Programming
– Alphanumerical product naming
– Hemmed products programming
– Radius programming (bumping)
– One page programming table
– Programmable material properties
– Programmable axis speed
– Product search filter
– Millimetres/Inches, kN/Ton selection
– Stock counter

Tooling
– Tool library 30 punches / 30 dies
– Alphanumeric tool identification
– Hemming tools
– Radius tools

Computed
– Tooling safety zones
– Press force
– Bend allowance
– Crowning adjustment
– Bottoming force
– Hemming force
– Auto bumping calculation
– Learned angle correction database

Miscellaneous
– ‘Teach-in’ on all axes
– Operator selectable dialogue languages
– Error messaging system
– Diagnostic program
– Machine time + stroke counter
– Onboard Analysis Tool
– Sequencer functionality (PLC)
– Safety PLC interfacing

Delem DA53T is a user-friendly and powerful press brake CNC controller that brings advanced touch screen technology, multi-axis control, and intelligent programming capabilities to optimize bending processes, enhance precision, and improve productivity.
