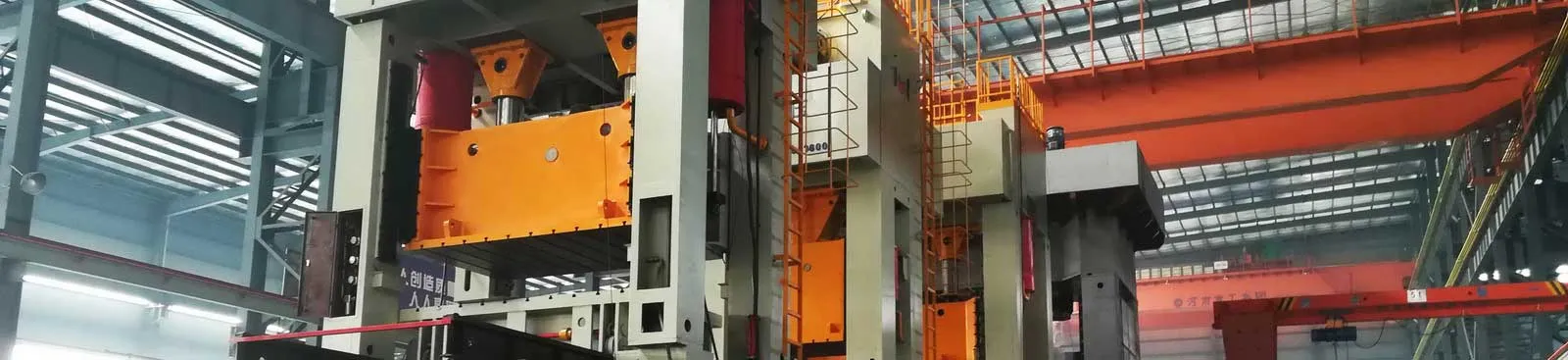

Hydraulic Press Machine is a hydraulic powered tool for Punching steel into shapes for Metal forming, and It includes electric, auto, and manual types. The hydraulic stamping press process covers forming, drawing, trimming, blanking, and punching. It is widely used in electronics, medical, and construction fields. The hydraulic pressing machine can meet the needs of high quality, easy operation, and low cost.Hydraulic press machine

How does a hydraulic press work? The hydraulic metal press machine is composed of a bolster plate and ram, cylinders, and pistons. The machine press uses a hydraulic cylinder to generate a compressive force. Depending on different fluid pressure, the liquid can be injected or reduced. and the pressure is changed to allow the piston to rise or fall. There is a piston that works as a pump, that provides a modest mechanical force to a small area of the sample. The stamping process works by forming the metal between two parts of a hydraulic press tool. When it does so, it deforms the material into the desired shape.

Hydraulic Presses are available in a wide variety of standard tonnage and configurations. The press frames are a welded construction for max strength and durability. The steel press machine capacity is from 10 ton to 1000 ton and is available in C-Frame, H-Frame, Four-column types. If you need a heavy duty or small hydraulic press machines or stamping dies, please contact us for prices.



What are the key Components of the Hydrolic press machine?

A hydraulic press machine's core components can be categorized into the mechanical structure system, hydraulic system, electrical control system, and auxiliary devices.

1  Hydraulic Cylinder: Contains the hydraulic fluid and the piston that transmits the force.
2  Piston: A movable component within the cylinder that is pushed by the hydraulic fluid.
3  Hydraulic Pump: Creates the pressure in the hydraulic fluid from mechanical energy.
4  Hydralic Valves: Control the flow of hydraulic fluid and the direction of the piston movement.
5  Frame: Provides the structural rigidity required to resist the massive "deflection" forces generated during the pressing cycle.
6  Dies or Tooling: Attached to the ram and the press bed to perform specific operations.

How It Works?

The Metal Stamping Press Machinery Advantages

The hydraulic pressing machine is using hydraulic pressure forces with hydraulic press tooling for various shapes.

Adjustable height ,speed ,stroke.

Built-in overload protection

Simple Structure and pneumatic innovation.

Lower tool costs

Metal Press Machine Applications

Kitchen Hardware Forming Parts

stainless-steel-kitchenware

laders

metal Lader-what we make

Metal Forming Parts

Hydraulic-press-produce-sample

FAQ- Frequently asked questions for Industrial Metal Press Machine

The metal Press machines include Hydraulic Metal Press Machine, Power Pressing machine, and heat press machines. It is used for forming metal parts by applying the following processes: shearing, blanking, forming, drawing, bending, forging, coining, upsetting, flanging, squeezing, and hammering.

Industrial hydraulic press for metal forming: Here's a breakdown of what to consider and where to look:

Factors to Consider Before Buying:

1. Tonnage Capacity: This is the most crucial factor. Industrial hydraulic presses can range from a few tons to thousands of tons.
2. Application: The common applications include: Forming, Punching, compacting, laminating
3. Testing: Material testing and quality control.
4. Bed Size and Daylight.
5. Stroke Length: The maximum travel distance of the ram.
6. Speed Requirements.

Difference between a Power press machine and a Hydraulic Press:

  • Pressure: Hydraulic metal press machines have static pressure, which can be slowed down while the pressure in the power press is rapidly decreases.
  • Speed control: Power press machines are rigid with high speed.
  • Precision: Hydraulic presses are favored for applications requiring precise force control and versatility

The Tonnage Formula is the pressure required in tons to cut a blank or contour using a flat faced punch with no shear. Tonnages of the hydraulic press machine can be calculated for forming, bending, cutting, drawing, and blanking operations. Having the ability to calculate the tonnages for a sheet metal project is vital for the completion and success of your project.

FORMULA
T(Ton) = P x Thick  x C(constant)

T = Pressure required in tons   |  P = Perimeter of blank in inches  |  Th = Thickness of material

C = Constant (see common ones below)   |  Constant = The material shear strength/2000 pounds

EXAMPLE
.050 CR Steel, 1/2 Hd; Cutting edge of 12 linear inches

T= 12 x .050 x 32 = 20 tons required

CONSTANTS
Aluminum- Soft-11                    |   T4/T6-15

Steel- HR/Cold Rolled-27        |    1/2 Hard-32

Stainless Steel- Annealed-37   |   1/2 Hard-50    |    4130 AQ - 40

Brass- 1/2      Hard-22               |   Hard-25b

When compared to mechanical fly-wheel presses, a hydraulic press for metal offers several distinct advantages for manufacturers:

  • Full Power Throughout the Stroke: Unlike mechanical presses that only hit peak tonnage at the bottom of the stroke, a hydraulic press can deliver maximum pressure at any point in the ram's travel.
  • Built-in Overload Protection: The machine cannot exceed its set pressure. If the resistance is too high, the relief valve opens, preventing damage to the frame or the tooling.
  • Adjustable Speed and Pressure: Operators can slow down the ram during the contact phase, which is critical for complex Deep Drawing operations to prevent the metal from tearing.

Lower Maintenance Costs: With fewer moving parts than a mechanical drive, hydraulic systems typically offer a longer service life with simpler maintenance requirements.

A mechanical press machine is a widely used metal forming machine tool. It is designed to form or cut metal by applying mechanical force or pressure. With the help of a press, you can form any desired shape of metal without removing chips. The press is specially used for mass production. The main advantage of using these types of mechanical presses is that they are the fastest and most effective method of forming any sheet metal into the final product.
