Custom 4 Way Press Brake Die USA

Unlock Max Efficiency: The Custom 4 Way Press Brake Die in the USA Fabrication

The U.S. metal manufacturing is diverse, ranging from energy equipment in Texas to aerospace components in California and Savannah, with extremely high demands on the precision, efficiency, and flexibility of sheet metal bending. A standard bending die often fails to meet all requirements, and the Custom 4-Way Press Brake Die, the ultimate tool for reducing setup time and boosting versatility in your US facility.

• Multi-V Tooling for high-mix fabrications: The bending profile may involve multiple material thicknesses (such as low-carbon steel, aluminum, or stainless steel), each with its unique rebound characteristics. A customized 4-way press die can be optimized to ensure precise, error-free bending at every angle.

• Reduce Press Brake Setup Time by 75%: By customizing the most suitable V-groove combination, you can minimize press Brake die quick-changeover time, allowing your bending machine to spend more time creating value rather than waiting for adjustments.

• Customize your exclusive tools:From special alloy steel materials to enhance wear resistance, to carving your company logo on molds, customization allows tools to fully serve your production process and brand.



What is a 4 Way Press Brake Die ?

A traditional bottom die is a single piece of steel with one V-opening. A 4-way die, also known as a multi-V die or four-way die, is a large, square, or rectangular tool steel block. It is engineered with four separate V-openings: one on each side, machined into a single piece.

The main advantage is simple: Versatility on Demand.

Instead of replacing the entire bottom die, the press brake operator simply rotates the 4-way die to expose a new V-opening. This drastically cuts down on tooling swaps, instantly translating to higher machine uptime and increased production speed—a necessity for demanding US contracts.



4-way die vs single v-die

Feature	Single V-Die	4-Way Die (Multi-V block)
Precision	Extremely High (Best for air bending tight tolerances)	High (Great for general fabrication)
Setup Time	Slow (Must physically remove and replace the heavy die)	Fast (Simply rotate the block in the holder)
Cost	Expensive (Requires buying 4 separate dies)	Cost-Effective (1 tool = 4 dies)
Versatility	Limited to one thickness range per die	Excellent (Handles multiple thicknesses)



The Benefit of Customization for the American Fabricator

While standard 4 way press brake dies are common, your most significant competitive advantage lies in a Custom 4-Way Press Brake Die for USA operations.
Why buy a standard model when you can design one for your most common materials and part geometry?



1. Tailored V-Openings for Precision Bending

In addition to the standard size, the custom 4-way die offers V-openings of 1/2”, 3/4”, 1-1/2”,2-1/4”, and 4”. But if your shop primarily bends 1/8″ mild steel, 3/16″ stainless, and 1/4″ aluminum,  application-driven V-openings to ensure precision bending.
We engineer your custom die to your exact needs, such as:

• A specific V-opening for high-strength steel (HSS).
• A custom radius opening for no-scratch aluminum bending.
• Two openings perfectly sized to match the bend allowances for your most frequently used parts.

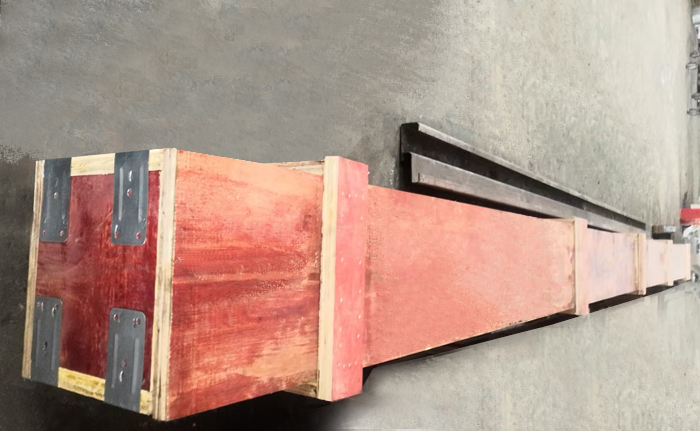

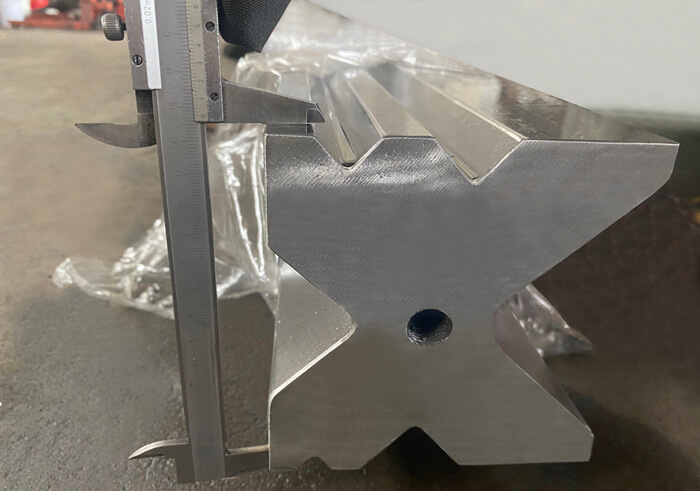

Description: Press Brake Multi-v Dies, size: 127x127x3700mm

Shipment From Shanghai To SAVANNAH, GA USA

1 Package, 3760x190x210mm,  369KGS ,0.15CBM , ETD: Nov 1st ,2025

AMS:AGMIL250474909A   HS 8207306032,

CSNU6151508/OOLKPU1299/40′ HQ



2. Advanced Tool Steel for Precision for 4-Way Dies

For maximum durability and a long tool life, your custom die should be made from premium materials Chromium Molybdenum Steel. We primarily use the best material, 42CrMo for 4-way die, which is known for its exceptional strength and wear resistance. This material ensures your investment can withstand the heavy-duty cycles required by the US market.



3. Guaranteed Compatibility: American Style or European Style

The US market features a variety of press brake brands. Our custom tooling is precision-ground and engineered to fit seamlessly into any clamping system, whether you run:

• American Precision Style Tooling (typically with a tongue for quick-clamping).
• European Precision Style Tooling (like Promecam, Wila, or Trumpf-style).

This compatibility means you get the reduce setup time benefit of a 4-way die without requiring machine modifications.



3 Ways a Custom 4 Way Press Brake Die Increases Your Profit

1. Massive Reduction in quick Changeover Time:

Eliminating three full die changes per rotation dramatically increases your press brake’s capacity, allowing you to process more parts per shift and take on more high-mix work.



2.Optimized Max Tonnage and Part Quality:

Using the exact V-opening for a material’s thickness ensures you use the correct tonnage and achieve consistent, accurate bend radii, leading to fewer scrapped parts and less machine wear.



3.Future-Proof Your Toolroom:

Designing a specialty tooling piece that addresses your most difficult recurring jobs means you have a dedicated, reliable solution for years to come.



Ready to Maximize Your Press Brake’s Uptime?

As a leading sheet metal manufacturer specializing in custom press brake tooling for the USA market, we are ready to engineer a 4-way solution built for your specific machines and projects. Stop changing dies, start rotating them.
Don’t settle for off-the-shelf limits. Get the precision, material quality, and speed you need to win competitive bids.
Click here to submit your custom 4-way die specifications and request a quote today!

Get Your Custom 4-Way Press Brake Die Quote Now
