Shipping High-Performance SKD11 Shear Blades to Toronto (YYZ)

In the industrial metal fabrication, a clean cut is the difference between a high-quality part and a costly scrap error. On March 17, JSTMT successfully dispatched a specialized SKD11 Shear Blade via air freight to Toronto International Airport (YYZ), Canada, supporting the high-demand manufacturing corridor of Ontario.

This shipment represents more than just a delivery; it is a critical “just-in-time” solution for an Ontario-based metal fabrication plant.

What are industrial machine knives?

Industrial machine knives are precision-engineered cutting components designed for heavy-duty, high-speed industrial applications. Unlike standard household or manual tools, these knives are manufactured to withstand extreme mechanical stress and thermal loads.

In the context of sheet metal fabrication, these are often referred to as shear blades. They serve as the critical interface between the machine’s power and the raw material, responsible for:

• Precision Shearing: Straight-line cutting of large metal sheets.
• Slitting: Dividing wide coils into narrower strips.
• Trimming: Removing excess material to achieve final part dimensions.

Scope of Application: These tools are the backbone of industries ranging from automotive assembly and aerospace engineering to HVAC ductwork and infrastructure construction. Any sector that requires high-volume, repeatable, and burr-free metal cutting relies on the integrity of these industrial knives.



Industrial Knives Blades shipment overview: Heavy, Long, and Precise

From Shanghai to YYZ Toronto Airport, Canada we dispatch the complete metal cutting knives by air under customers request. The technical specifications for this March 17th operation under airway bill #7848275882 included:

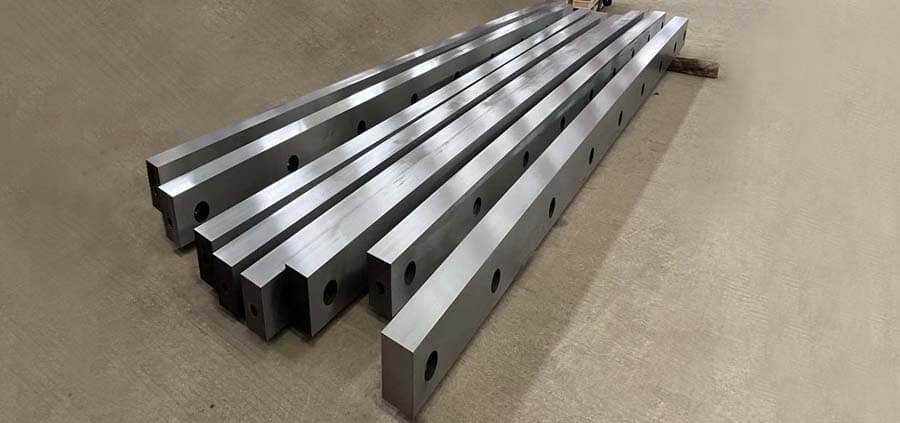

• Product Type: High-Precision Industrial Machine Knives
• Material Composition: SKD11 (D2 equivalent) Cold-Work Tool Steel
• Package Dimensions: 2150mm x 150mm x 160mm (84.6 inches in length)
• Weight: 75kg Gross Weight
• Total Volume: 0.05 CBM
• Flight Number： CZ487   Date：15 Mar



The Metallurgy of a Perfect Cut: Three Core Factors of SKD11

Why did this specific order require SKD11? For a 2.1-meter blade, the metallurgy must be perfect. We focus on three core factors to ensure long-term performance

1. The Balance of Hardness vs. Toughness

A superior shear blade must be hard enough to penetrate tough materials but ductile enough to absorb mechanical shock without shattering.

• The SKD11 Edge: Our vacuum heat-treatment process achieves a hardness of HRC 58-62. This allows the blade to “bite” into stainless steel and high-tensile plates.
• The Benefit: By optimizing the grain structure, we achieve a high level of toughness that prevents edge chipping, even under the high-tonnage loads required for heavy-gauge shearing.



2. Exceptional Wear Resistance

In a high-volume production environment, “blade drift” or dulling can lead to excessive burrs and part rejection.

• The Chemistry: SKD11 is a high-carbon, high-chromium alloy. The presence of molybdenum and vanadium creates a dense distribution of hard carbides.
• The Benefit: This chemistry provides incredible resistance to abrasive wear. For the operator, this means fewer regrinds, longer service intervals, and a significantly lower cost-per-cut over the lifetime of the tool.



3. Heat Treatment & Dimensional Stability

Maintaining a consistent Blade Clearance across a 2100mm length is one of the greatest challenges in blade manufacturing.

• The Precision: Longer blades are prone to warping or “bowing” during the quenching process. SKD11 is renowned for its excellent dimensional stability during heat treatment.
• The Benefit: Because our blades remain perfectly straight and flat after hardening, the clearance between the upper and lower blade remains uniform across the entire length of the machine. This eliminates the “waviness” often seen in parts cut with inferior, lower-grade steel blades.

c



Why SKD11 used for Metal Shear Blades?

SKD11 industrial knives are prized for their exceptional hardness and edge retention.

We selected SKD11 (High-Carbon, High-Chromium Alloy Steel) for this 2.1-meter blade due to its exceptional properties:

• Extreme Hardness: Vacuum heat-treated to HRC 60 ± 2, ensuring the edge remains sharp even when cutting stainless steel.
• Wear Resistance: Superior to standard 9CrSi, SKD11 significantly reduces the frequency of blade regrinding.
• Impact Toughness: Designed to handle high-speed shearing without chipping or cracking.



Navigating “Long Cargo” Challenges to YYZ

Transporting a 2.15-meter crate via air freight presents unique challenges. Most air cargo slots are optimized for standard pallets, not elongated packages. To ensure the blade reached Toronto in pristine condition, we implemented a multi-layer protection strategy:

• Vapor Corrosion Inhibitors (VCI): To prevent rust during the transition through different climate zones
• Reinforced Crating: Given the 2150mm length, we utilized a custom-built, ISPM-15 compliant wooden crate to ensure the knife remained perfectly straight, preventing any micro-warping that could occur with inferior packaging.

Strategic Insights for Importing Industrial Knives to Canada

For businesses looking to source custom machine knives or replacement cutting tools, consider these three factors:

• HS Code Accuracy: Ensure your industrial machine knives are classified correctly (typically under heading 8208) to minimize duty delays at Canadian customs.
• Weight Distribution: For 75kg+ narrow packages, ensure the center of gravity is marked on the crate.
• Material Certification: Always provide the SKD11 heat treatment reports during the shipping process to verify the cargo’s value and intended industrial use.



Conclusion: How to Maximize the Service Life of Your Industrial Machine Knives

To ensure you get the maximum ROI out of this “precision instrument,” remember these three maintenance rules:

• Blade Clearance Calibration: Strictly adjust the gap between the upper and lower blades according to the specific thickness of the material being cut. Proper clearance is the key to clean cuts and preventing unnecessary tool wear.
• Material Verification: Never shear materials that exceed the rated hardness of the blade. Attempting to cut over-hardened metal is the primary cause of edge chipping and permanent blade damage.
• Regular Blade Rotation: Our industrial machine knives for metal shear are typically designed with four usable cutting edges. Regularly rotating the blade to a fresh edge will significantly extend the tool’s life and multiply your return on investment (ROI).
